Details

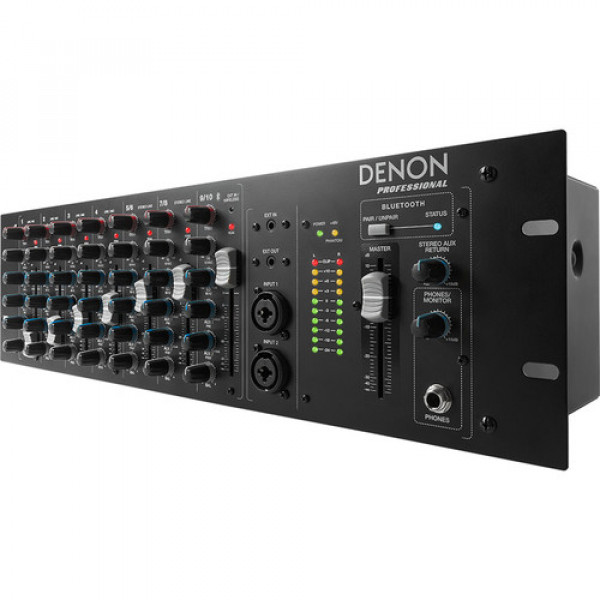

Designed to integrate Bluetooth capability into a 3U rackmount mixer, the 10-Channel DN-410X from Denon is suitable for multiple scenarios, such as A/V applications, conference rooms, nightclubs, and restaurants. The mixer sports balanced XLR inputs, balanced 1/4" TRS connection points, stereo RCA terminations for unbalanced devices, and Bluetooth pairing with convenient single-button pairing. The unit uses Bluetooth 3.0 and has a transmission range of up to 100'. A plethora of outputs are provided, including 1/4" balanced TRS connections, a 3.5mm stereo connection, and a 1/4" headphone jack.
-
Inputs
-
Channels 1-4 (mono)
- Mic: XLR with switchable phantom power
- Line: 1/4" Mono
- Insert: 1/4" TRS
- Front: XLR+1/4" combo jacks
- (Channels 1 and 2 only—overrides rear jacks
-
Channels 5-6 (stereo pair)
- Line: 1/4" Left, Right
-
Channels 7-8 (stereo pair)
- Line: 1/4" Left, Right
- RCA: Left, Right
-
Channels 9-10 (stereo pair)
- Bluetooth: Stereo Streaming In
- Ext: 1/8" Stereo (front panel)
- Aux Return: 1/4" TRS Balanced Left, Right
-
-
Outputs
- Main: 1/4" TRS Balanced Left, Right
- Monitor: 1/4" Left, Right
- Aux Send 1: 1/4"
- Aux Send 2: 1/4"
- Headphones: Stereo 1/4"
- Ext: 1/8" Stereo (front panel
-
Design
- 3U Rackmount chassis
- Detachable power cable
-
Dimensions
- Height: 5.25"
- Depth: 6.25"
- Width: 19"
- Weight: 8.9lbs
-
Frequency Response
- 20 Hz – 50 KHz, ±0.5 dB
-
Dynamic Range
- 108 dB
-
THD+N
- < 0.005% (Mic/Line Input to Main Out)
-
Maximum Gain
- 70 dB (Mic Input to Main Out)
-
Headroom
- 24 dB
-
Bluetooth Specifications
- Version: 3.0
- Maximum Transmission Power: Class 3, +4 dBm
- Transmission Frequency: 2.4 GHz
- Transmission Range: Up to 100 feet / 30.5 meters
- Receiver Sensitivity: < -70 dBm @ 0.1% BER
- Supported Profiles: A2DP
-
Power
-
Input Voltage
- 115 VAC, 60 Hz; 230 VAC, 50 Hz
- Rear panel voltage selector
-
Fuse
- 115 VAC, 60 Hz: T630 mAL 250 V
- 230 VAC, 50 Hz: T315 mAL 250 V
-
-
Dimensions (width x depth x height)
- 19.0” x 6.25” x 5.25”
- 48.3 cm x 15.9 cm x 13.3 cm
-
Weight
- 8.9 lbs.
- 4.0 kg
