Details

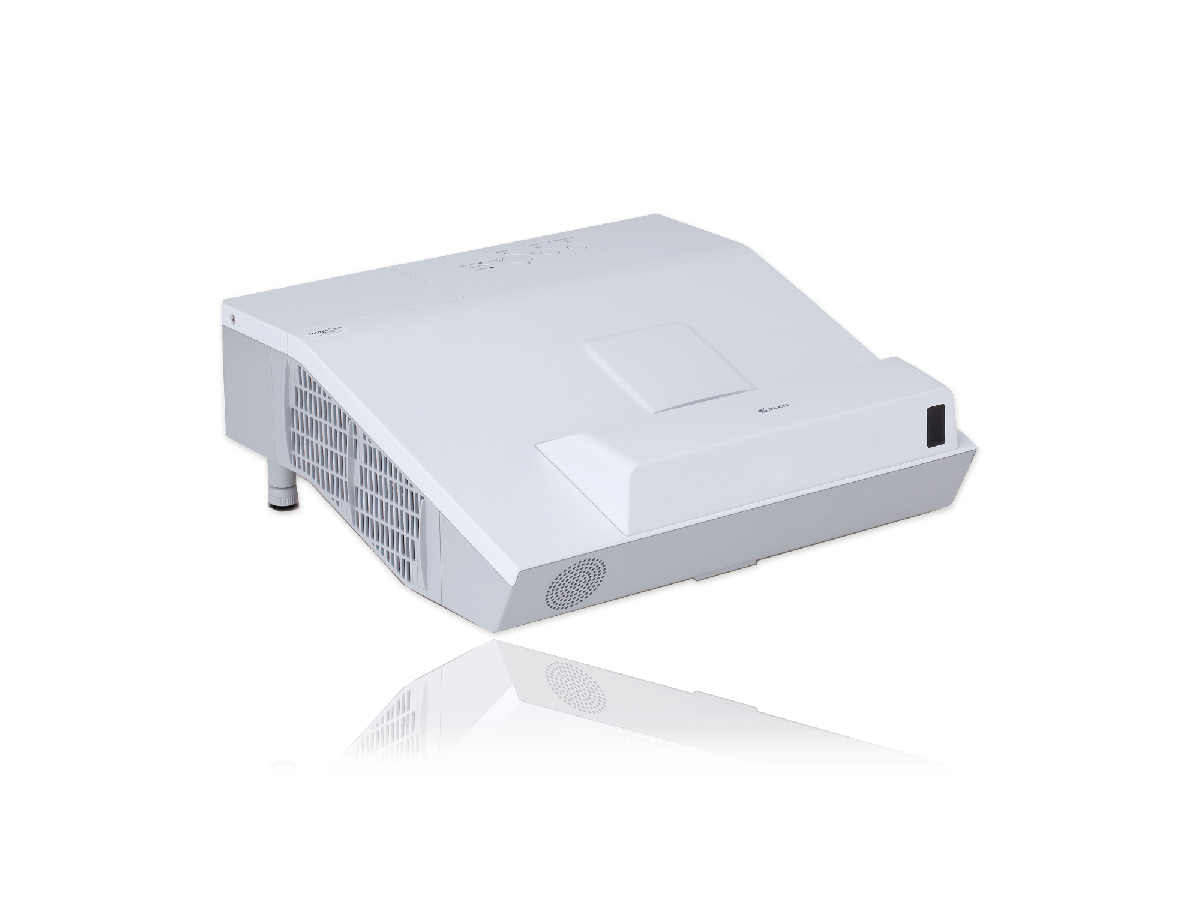

Maxell’s MC-AX3506 ultra short throw LCD projector is ideally suited for producing large images in limited spaces. It provides vibrant image quality with cost-effective operation. A suite of advanced features normally found only on higher end models includes 2 HDMI ports, High Dynamic Contrast Range (HDCR), and Maxell’s original technology Accentualizer that allows the projected image to appear more real by enhancing sharpness, gloss and shade. Along with its light weight and compact design, the MC-AX3506 offers Maxell’s most appreciated installation feature, “Perfect Fit 2”, allowing time saving and ease of installation. As with all Maxell projectors, you can expect vibrant image quality, cost-efficient operation, and long-lasting reliability. Plus, Maxell’s Intelligent Eco and Saver Modes with ImageCare combines optimal picture performance with energy savings for a lower total cost of ownership.
Unique Features
Accentualizer:
Maxell original technology makes pictures look more real by enhancing sharpness, gloss and shade to make pictures as clear as pictures on a flat-panel device. You can also adjust the effects by three levels according to your surroundings so that the colors of projected images are the actual colors of the objects they represent.
HDCR (High Dynamic Contrast Range):
When average projectors are used in bright rooms, the darker colors of an image deteriorate and images become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. This results in clear images even in bright rooms.
Cloning Function:
Copy setting data from one projector to others of the same model via USB memory. Cloning not only saves almost all PJ settings such as gamma and keystone via USB memory, it saves countless hours in setup and installation.
ImageCare Technology:

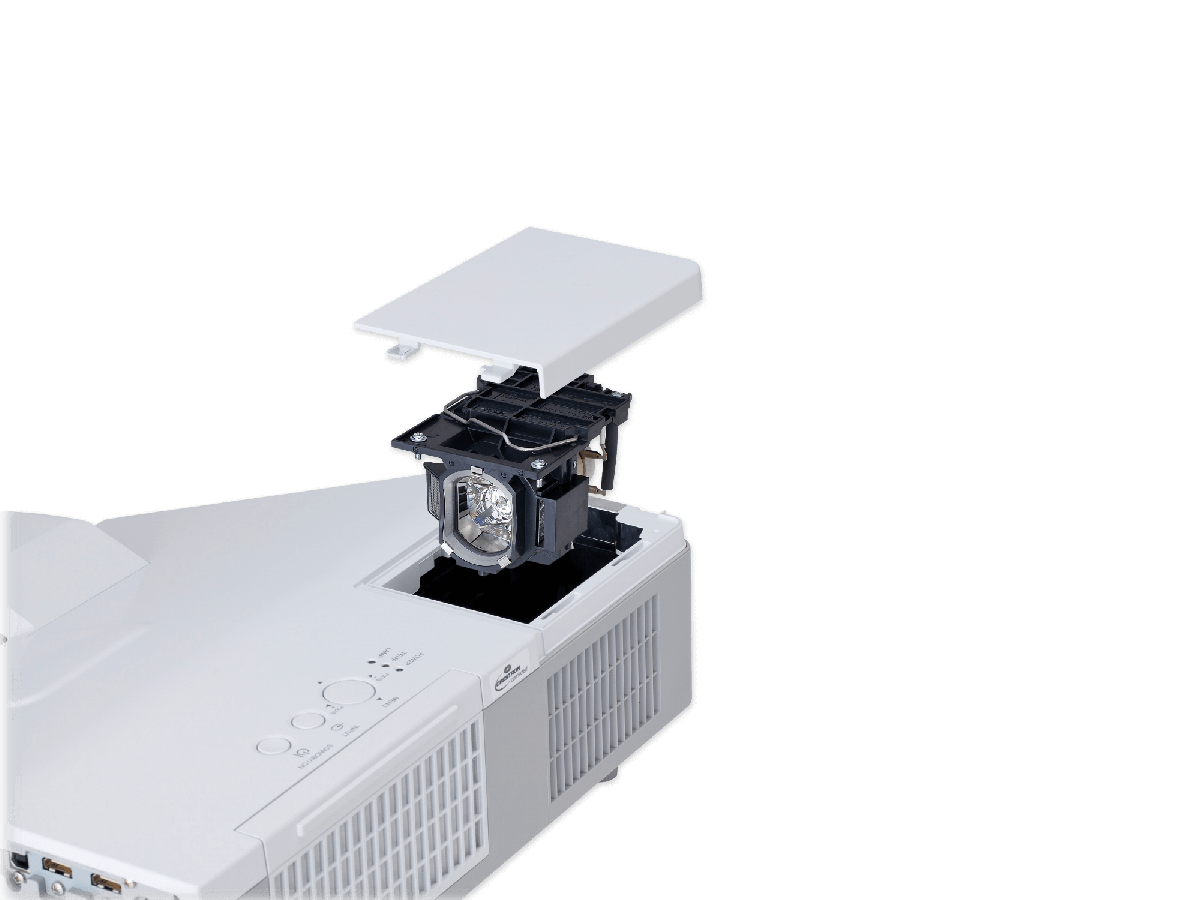

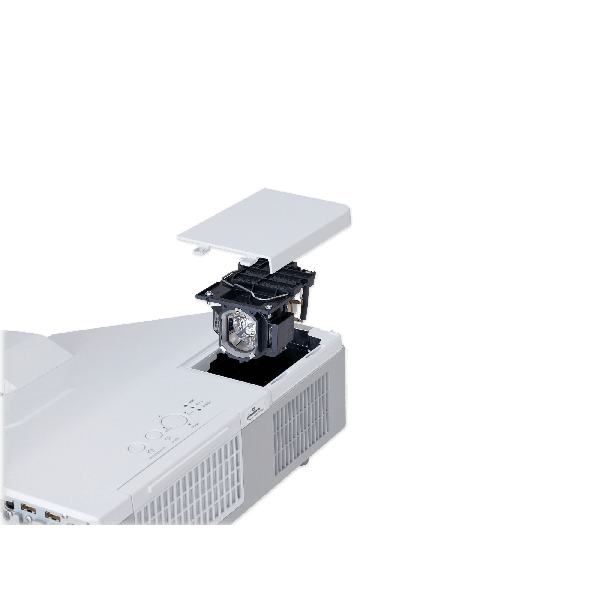

ImageCare is a lamp power control function that combines optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio and lengthening lamp life. The result is a lower total cost of ownership and decreased maintenance cost.
Intelligent Eco and Saver Mode:
Automatically changes the brightness of the lamp according to the brightness level of the screen. Also, automatically changes the brightness of the lamp if there is no change in the screen image. Using ImageCare technology, these features give optimal picture performance with maximum energy savings.
Perfect Fit 2:
Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pincushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.
Projector Quick Connection App For Mobile Devices:
Our iOS and Android applications offers projector control and also provides the capability to display photos, document files and web site contents. Available for iPad®, iPhone®, and Android devices. Works over your LAN via your RJ-45 port or via an optional USBWL11N wireless adapter.
Tabletop Presentation:
Make any tabletop a projection screen using the optional tabletop stand. Ideal for a small group environment or in a room with limited space.
Standard Features
Input Source Naming:
Users can name input sources in simple language instead of factory default names.
Microphone Input:
A microphone can be used via the jack located on the input panel. Allows for more dynamic presentations even in standby mode.
Network Control, Maintenance and Security:
Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer and e-mail alerts for reactive and routine maintenance.
PC-Less Presentation:
By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. Additionally, there is also a slideshow and video function.
PIN Lock / MyScreen / MyText:
PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number or location.
PJMessenger:
PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
Present Content via LAN:
Maxell’s suite of networking software allows you to easily send content directly from your PC to the projector via your LAN connection.
Template Function:
Line templates in the projector menu can help when writing on a whiteboard. There are four types of line templates to choose from.
Wireless Presentation Compatible:
Connect the projector to a a computer or your network using the optional USB wireless adapter (part number USBWL11N). The adapter supports IEEE802.11n.
Additional Information
| Brightness (ANSI Lumens) | 3,600 lumens |
|---|---|
| Contrast Ratio | 10,000 : 1 (using active IRIS) |
| Display Type | 3LCD, 3 chip technology |
| Resolution (Native / Max) | XGA (1024 x 768) |
