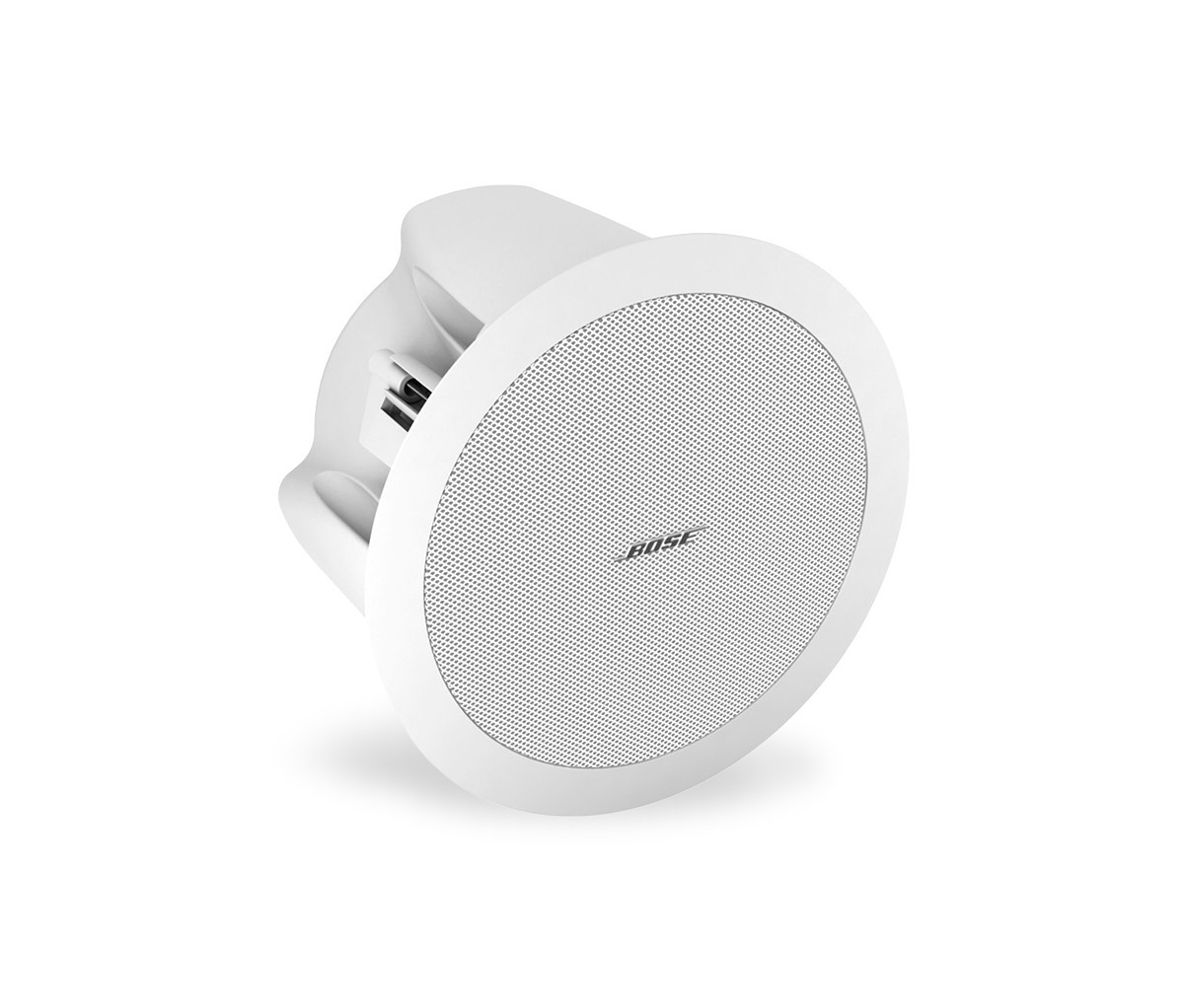

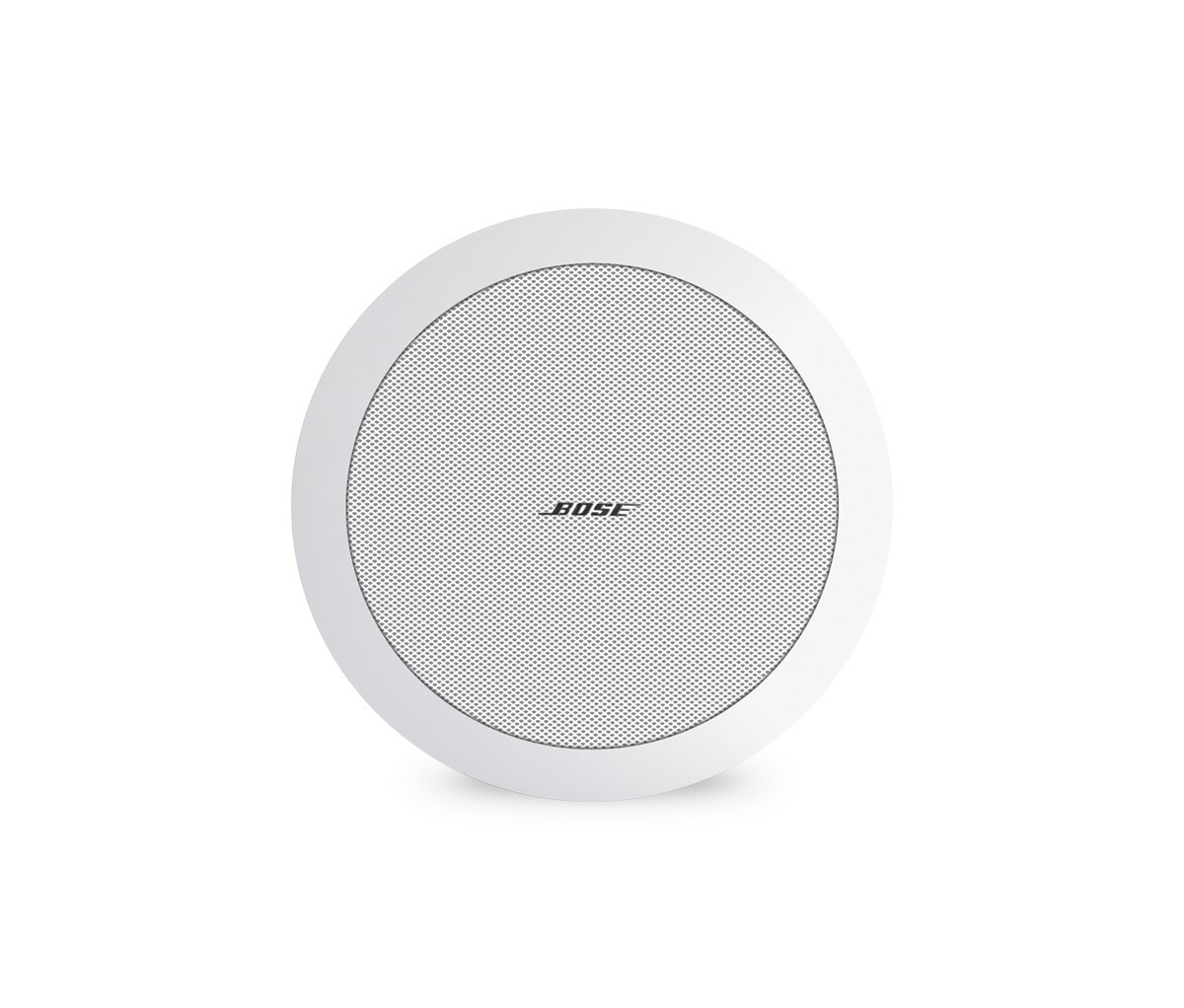

Full-range loudspeaker with a single 2.25" (57 mm) driver in a ported enclosure to deliver a 140° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendant-mount applications
Details
Entry-level, full-range, flush-mount loudspeaker designed for background music and speech reproduction in a wide range of installed applications. Wide, even 140° conical pattern and frequency range down to 80 Hz.
For indoor applications only.
FEATURES
Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
Can be combined with either surface- or flush-mount FreeSpace 3 Acoustimass® module for extended bass response
Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille
Applications
- Retail stores
- Restaurants and bars
- Concourses
- Transportation facilities
- Resorts and hospitality venues
- Houses of worship
Additional Information
| Speaker Type | Passive |
|---|---|
| Frequency Response | 95 Hz - 17 kHz |
| Sensitivity | 84 dB SPL |
| Frequency Range | 80 Hz - 19 kHz |
| Nominal Impedance | 8 Ω (transformer bypassed) |
| Long-Term Power Handling | 16 W (64 W peak) |
| Nominal Disperson | 140° conical |
