Details

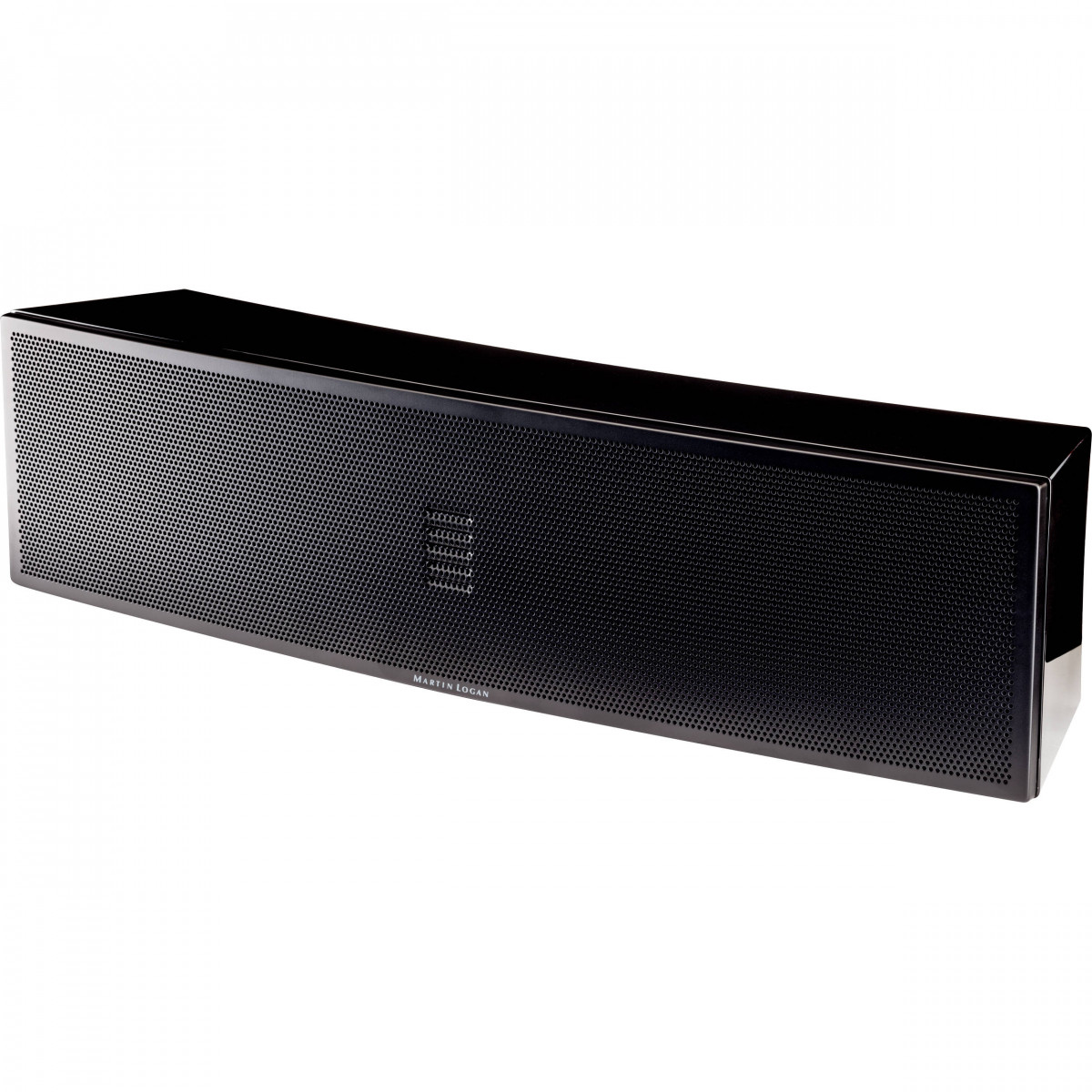

Motion 8i Specifications
|
Frequency Response |
70–23,000 Hz ±3dB |
|
Horizontal Dispersion |
80° |
|
Vertical Dispersion |
80° |
|
High Frequency Transducer |
1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm |
|
Low Frequency Transducer |
Two 4" (10.2cm) paper cone with stamped steel basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes. Sealed. |
|
Sensitivity |
89 dB/2.83 volts/meter |
|
Impedance |
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
|
Recommended Amplifier Power |
20—180 watts per channel |
|
Crossover Frequency |
3,000 Hz |
|
Components |
Custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection. |
|
Inputs |
Push style with banana jacks |
|
Weight |
8.5 lbs. (3.85 kg) |
|
Dimensions |
5.6" x 22.25" x 5.2 " |
