Details
High brightness, excellent connectivity and amazing colors ensure the Optoma EH501 full HD 1080p projector is the perfect choice for any large venue or conference room • Exceeding the demands of 21st century, the EH501 is packed with wide array of features to make presenting both easier and more exciting than ever before • The environmentally friendly EH501 has energy saving features including Eco+ lamp power management, <0.5W standby mode and auto power off, saving you both time and money • Enjoy hassle-free presenting using the USB Reader to project a JPEG presentation directly from a USB flash drive • Using the inherent speed of DLP® technology, Optoma Full 3D projectors can output video and images at an astonishing rate of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D • A Full HD projector with 1920x1080 pixels has more than twice the resolution of an HD-Ready display • This Full HD projector accepts a wide variety of computer and video input signals • The EH501 can project a 100” diagonal image from any distance between 3.03m and 4.54m • applications requiring smooth continuous operation, minimising service time is essential • Power on both your projector and screen at the touch of a single button • Designed specifically for larger meeting rooms and lecture theatres, this projector includes a special DICOMsim mode that has been specially tuned for viewing greyscale images, perfect for viewing X-rays and scans during medical training • DarkChip3™ from Texas Instruments, combined with Eco+ dynamic lamp technology produce a stunning 15,000:1 contrast ratio for pin sharp graphics and crystal clear text • Give powerful presentations and educational lessons with stunning colours • Using the free Crestron Roomview software, multiple EH501 can be monitored over LAN and also provide the user with an email message alert in case an error occurs or a lamp fails • Instantly present from your phone or tablet using the free App: VueMagic. Available for both Android and iOS devices, VueMagic. gives you the freedom to move around the room, share ideas and connect with your audience like never before, to create a more collaborative experience for everyone • Stream your mobile device’s camera feed directly to your projector to turn it into a portable visualiser; Ideal for sharing ideas with larger groups • Direct Power ON switches the projector on when the power cable is inserted into an active power outlet • Signal Power On switches the projector on when an active VGA source is connected to the unit • Key pad lock – once enabled prevents unauthorised adjustments ensuring the projector can only be controlled via the remote control
Additional Information
| Aspect Ratio | 16:9 Native, 16:10/4:3 Compatible |
|---|---|
| Brightness (ANSI Lumens) | 5000 ANSI lumens |
| Contrast Ratio | 15,000:1 |
| Display Type | Single 0.65” 1080p DLP® Technology by Texas Instruments |
| Resolution (Native / Max) | 1080p 1920 x 1080 |
| Video Compatibility | PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p |
| Projection Lens | F/2.42~2.98; f=20.77~31.13mm, 1.5x Manual Zoom |
| Power Supply | 100-240V, 50-60Hz |
| Power Consumption | 345W Bright mode, 279W Eco+ mode, <0.5W Standby mode |
| Audible Noise | 27dB |
| Lamp Type | 310W |
| Projection Screen Size (Diagonal) | 0.76 – 7.62m (30” - 300”) Diagonal 16:9 |
| Throw Ratio | 1.37 - 2.05:1, Offset: 115%~135% |
| Lamp Life | 4000/2500 (hrs) |
| Features | V.Lens Shift, PC-Free / LAN presentation, Crestron RoomView®, PJ-Link |
| Lens Shift | +20% Vertical |
| Projection Distance | 1.2 - 10m |
| Remote Control | Full function remote with laser pointer, mouse control and direct source selecting |
| 3D | Mandatory HDMI 1.4 3D formats, 120Hz frame sequential (up to 720p) |
| Speaker Power | Two 15-Watt speakers |
| Keystone Correction | ± 40° Vertical |

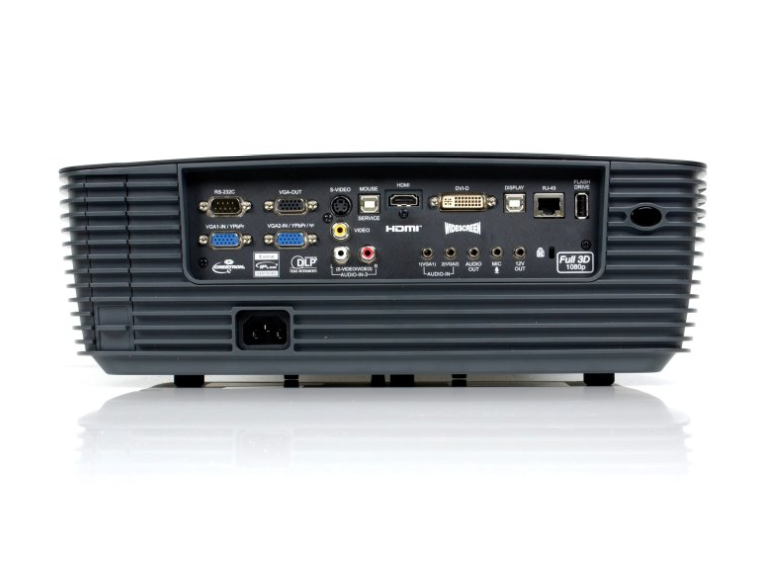

| InputsOutputs | HDMI, DVI-D, 2x VGA (RGB/YPbPr), S-Video, Composite, 3 x Audio In (RCA/3.5mm), Mic 3.5mm, Audio Out 3.5mm, VGA Out, RJ45, RS232, |
| Uniformity | 85% |
| Zoom | 1.5x Manual |
| Color Range | 1.07 Billion |
| Security | Kensington Lock, Password Protection |
