Product features
- HDMI input

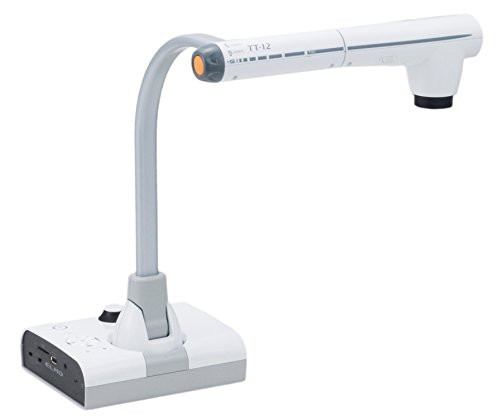

In addition to the superb image quality and easy-to-use functions, the TT-12iD is equipped with a HDMI input. With the independent built-in switchers, the external image input to the HDMI input is output from the HDMI output and the external image input to the Analog RGB input is output from the Analog RGB output.
- Powerful 96x zoom and 3.4MP CMOS image sensor
When the TT-12iD's high magnification 12x optical zoom is combined with its 8x digital zoom, images can be enlarged up to 96 times for a clear distortion-free display of even tiny details. The TT-12iD's image sensor captures everything from fine text to three-dimensional objects in 1080p Full HD.
- View material from various angles

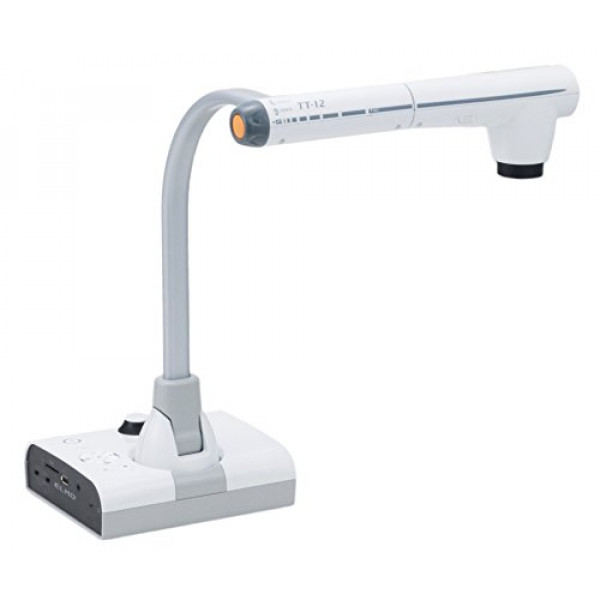

From above, from the side, up close - explore any angle! The adjustable camera head and arm can be freely raised, lowered, and rotated to focus attention precisely where it's needed.
- Zoom dial & one push AF button
A simple turn of the zoom dial is all that is needed to zoom in and out and make fine zoom adjustments. For added ease of use, the AF (Auto Focus) button enables easy one-touch auto focusing.
- Audio input & output
With the TT-12iD, audio enhancement can be added to classroom presentations via the built-in microphone or an external microphone input. Audio output can be routed to the external HDMI or Audio Line Out port.
- Presentation support tools
The TT-12iD's ergonomically designed wireless remote control brings convenient functions to classroom presentations, including the capability to highlight or mask selected parts of an image. With the Split Screen function, a still image and a live image can be displayed simultaneously, while the Picture-in-Picture function allows a quarter-size still image to be shown along with a live image.
- Save classroom presentations on external memory
Both still images and audio video files can be saved on a USB flash drive or SD memory card for future use.
- Smooth moving images at 30 fps
The TT-12iD captures and reproduces moving images at 30 fps for the display of truly smooth, natural looking motion.
| Camera | |
|---|---|
| IMAGE PICK-UP DEVICE | 1/2.8" CMOS sensor 3,400,000 pixels |
| TOTAL PIXELS | 2,144 (H) x 1,588 (V) |
| EFFECTIVE PIXELS | 1,920 (H) x 1,536 (V) |
| FRAME RATE | 30 fps |
| RESOLUTION | Analog RGB: 800 (H) x 800 (V) TV lines or more |
| Optics | |
|---|---|
| ZOOM | Powered, 12x optical |
| LENS | F3.2-3.6, f=4.0 mm- 48.0 mm |
| SHOOTING AREA | 1080p: Max. 16 9/16" x 9 3/16" (420 x 233 mm) Min. 1 15/16" x 1 1/16" (48.5 x 27.5 mm) 720p: Max. 16 9/16" x 9 3/16" (420 x 233 mm) Min. 1 15/16" x 1 1/16" (48.5 x 27.5 mm) SXGA: Max. 16 9/16" x 13 1/8" (420 x 334 mm) Min. 1 15/16" x 1 1/2" (48.5 x 38.5 mm) WXGA: Max. 16 9/16" x 10 3/16" (420 x 259 mm) Min. 1 15/16" x 1 3/16" (48.5 x 30.5 mm) XGA: Max. 16 9/16" x 12 5/16" (420 x 313 mm) Min. 1 15/16" x 1 7/16" (48.5 x 36.5 mm) |
| FOCUS | Auto / Manual / Zoom Sync |
| Functions | |
|---|---|
| WHITE BALANCE | Auto / One-Push / Manual |
| IMAGE MODE | Text1 / Text2 / Text3 / Graphics1 / Graphics2 |
| EDGE ENHANCEMENT | Provided (only for graphics mode) |
| PAUSE | Provided |
| STILL IMAGE STORAGE | Provided |
| MOVIE STORAGE | Provided |
| USB IMAGE OUTPUT | Provided (ELMO original, UVC (USB Video Class)) |
| DIGITAL ZOOM | 8x |
| GAMMA SETTING | Provided (only for graphics mode) |
| GRAPHICAL OSD (ON-SCREEN DISPLAY) | Provided |
| SLIDE SHOW | Provided (image data) |
| IMAGE SAVE | SD memory card / SDHC memory card / USB flash drive |
| STATE PRESETTING | Up to 3 user settings |
| ANNOTATION | Provided (CRA-1 use) |
| BRIGHTNESS CONTROL | Auto (with level adjustment) / Manual |
| SUPPORT FUNCTIONS | Highlight, Mask, Scroll (in digital zoom), Mosaic, Split screen, PinP (Picture-in-Picture), Color filter, Microscope, Image rotation (0º/180º), Positive/negative conversion, Color/B&W selection |
| Interface | |
|---|---|
| INPUT SELECTION | Main / External |
| OUTPUT TERMINALS | RGB output mini D-sub 15-pin connector, female x 1 HDMI output terminal x 1 Line Out terminal 3.5 mm-diameter stereo mini jack x 1 |
| INPUT TERMINALS | RGB input mini D-sub 15-pin connector, female x 1 HDMI imput terminal x1 Mic In/Line In terminal (shared), 3.5 mm-diameter stereo mini jack x1 |
| EXT. CONTROL TERMINAL | USB device (2.0 compliant) (UVC Compliant) Mini-B receptacle x 1 |
| ANALOG RGB OUTPUT | 1080p: 1,920 x 1,080 @ 60 Hz 720p: 1,280 x 720 @ 60 Hz SXGA: 1,280 x 1,024 @ 60 Hz WXGA: 1,280 x 800 @ 60 Hz XGA: 1,024 x 768 @ 60 Hz |
| HDMI OUTPUT | Image output: 1080p/720p Audio output: PCM 44.1 kHz sampling frequency |
| MEMORY INTERFACE | SD memory card slot x 1, USB host (2.0 compliant) Type A receptacle x 1 |
| Lighting | |
|---|---|
| ILLUMINATION LAMP | White LED |
| Others | |
|---|---|
| ACCESSORIES | AC adapter, power cord, USB cable, Instruction manual, Image Mate CD-ROM, Infrared wireless remote control, AAA battery, Easy start-up guide, warranty sheet |
| SECURITY SLOT | Provided |
| POWER SOURCE | 12V DC (AC adapter AC 100 - 240V) |
| POWER CONSUMPTION | 16.2 W (AC adapter included) |
| DIMENSIONS (WXDXH) | 14" x 14 11/16" 16 3/16" (355 x 373.5 x 426.5 mm) setup 7 11/16" x 11 9/16" x 18 7/16" (195 x 294 x 469 mm) folded |
| WEIGHT | Approx. 7.1 lbs (3.2 kg) (main unit only) |
