Details

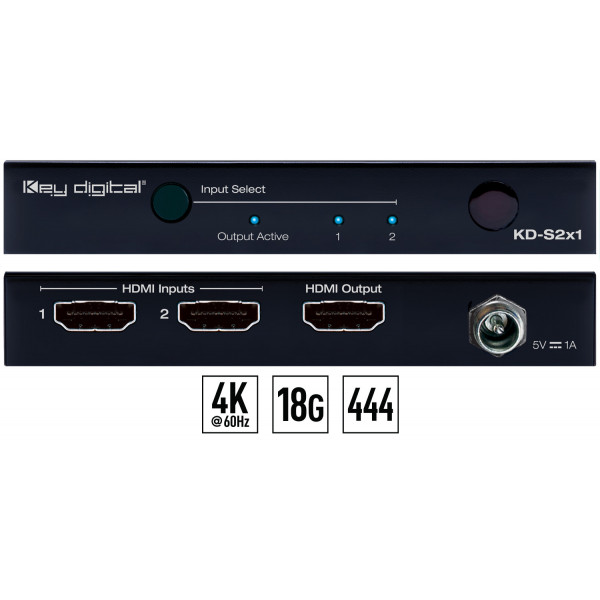

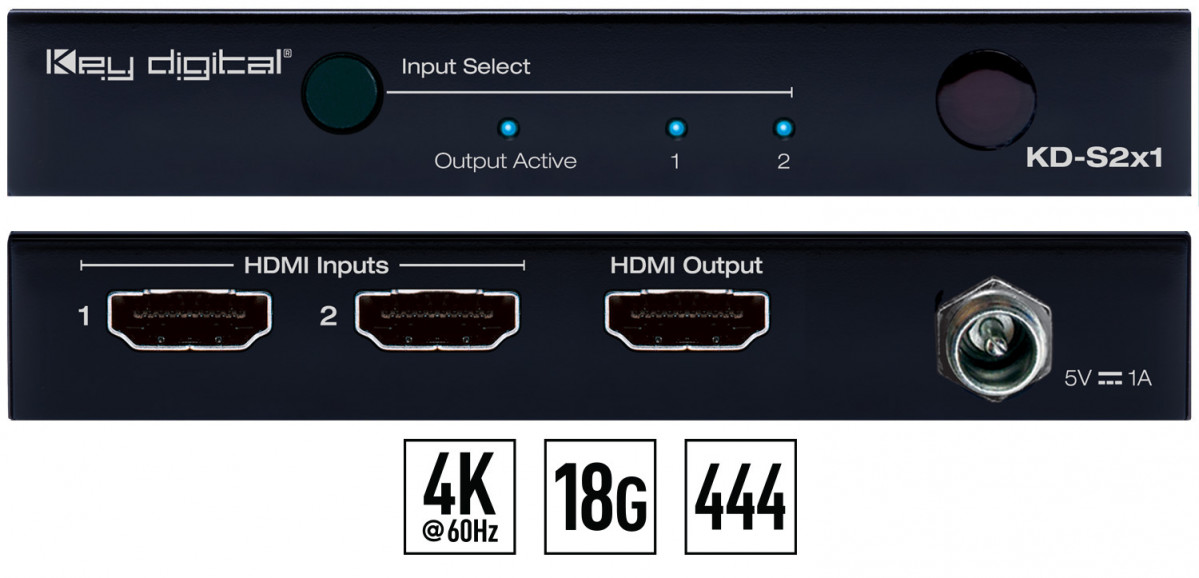

The 2x1 4K HDMI Switcher from Key-Digital supports HDR10, HDCP2.2, and Ultra HD/4K. It features an internal library with 16 default EDID configurations for each input, including native EDID data of output/display. It supports full CEC and features front-panel push buttons and LEDs, and optical IR. With Full Buffer system, it manages TMDS re-clocking/signal re-generation, HDCP source & display authentication, hot plug management, and EDID control handshake.
Key Features:
- Digital Switching: 2 HDMI Sources to 1 HDMI Display
- Resolution Support: SD, HD, and VESA up to UHD/4K
- 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
- HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
- HDCP 2.2 and HDMI Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technologies
- Ultra HD/4K Support: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
- 3D Ready: Capability to pass 3D stereoscopic signal formats
- EDID Control: Internal library with 16 default EDID configurations for each input, including native EDID data of Output/Display
- Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
- Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos and DTS-HD Master Audio
- Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
- I2C Communication: EDID and HDCP buffering from Display to Source
- Control: Front panel push buttons and LEDs, Optical IR
- CEC: Full Support
- Control System Support: Compass Control Pro ready. Fully controllable by all IR supported control systems.
- Input (Each): HDMI Connector, Type A, 19 Pin Female
- Output: HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gb/s
- DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
- Power Supply: KDPS5V1ASC, 5V/1A, Interchangeable head, screw-in connector
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product Dimensions: 4.3” x 1.1” x 2.8”
- Packaging Dimensions: 6.3” x 4.2” x 3.7”
- Product Weight: 0.5 lb
- Shipping Weight: 0.7 lb
