Details

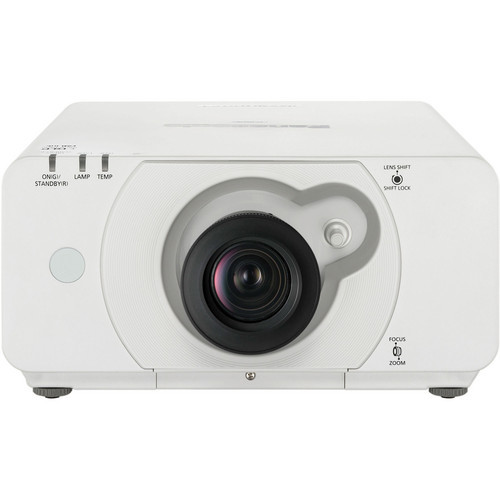

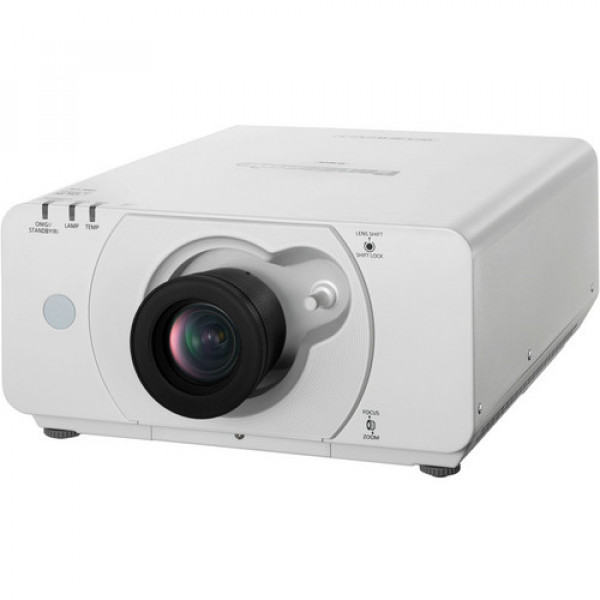

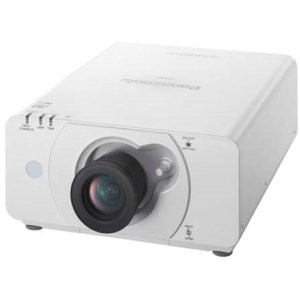

For easy installation to replacement of an existing system, the PT-DW530U offers a wide horizontal/vertical-lens shift and 2x zoom lens technology to accommodate a variety of room sizes. Increased reliability and reduced maintenance costs is made possible by the original dust resistant optics, easy rear-access lamp replacement system and LAN network web browser control for easy monitoring and maintenance.
Features
A full 4,000 lumens of brightness and contrast of 2,000:1
The AC lamp unit features an efficient light focusing reflector. Using only a single lamp unit, the PT-DW530U offers 4,000 lumens of brightness. It boasts a high contrast ratio of 2,000:1.
RGB booster significantly improves color reproduction
The RGB booster achieves high image quality with levels of color reproduction and brightness that make each color stand out. It combines Panasonic's proprietary vivid color control technology with a lamp modulation drive system for a 1-chip DLP projector that produces bright and vivid colors.
Detail Clarity Processor 3 brings depth and clarity to details
The frequency of the video signal is analyzed for each scene, and distribution data is extracted for the ultra high, high, medium and low-range frequencies. This unique Panasonic image correction circuit optimally enhances each area of the screen. High-precision detection is applied from 2-dimensional horizontal/vertical data to produce more natural, lifelike images with high definition.
Daylight view premium for better color perception
This function corrects the image quality to project sharp, clear images even in brightly lit rooms. A luminance sensor measures the ambient brightness, and a realtime adjustment function optimizes sharpness and brightness according to the surroundings. This adjustment function also works together with the Detail Clarity Processor 3 to enhance the realism and vividness of projected images. This makes images easier to view and offers high contrast.
Easy lamp replacement

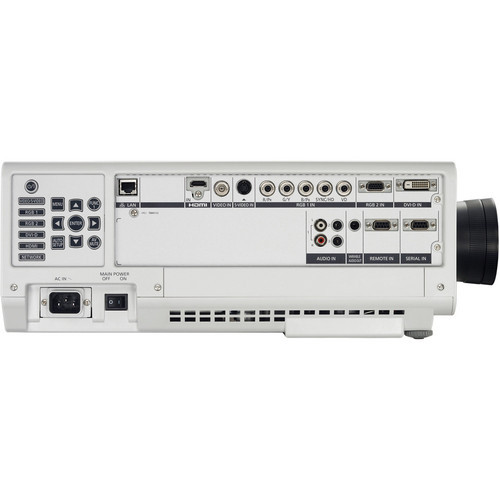

For easier maintenance, you can replace the lamp from the rear. The lamp is easily replaced even after the projector is installed on the ceiling.
Flexible angle setting
The unit can be rotated 360° vertically. This means you can install it at any up-and-down angle you wish to accommodate different installation conditions.
Lens-centered design
A lens-centered, symmetrical design provides ease of installation, eliminating the need for any special considerations when planning the installation site.
Eco management functions
A number of functions are provided to reduce power consumption. It adjusts the brightness according to the ambient light conditions and reduce the lamp power when there is no signal input or the projector is in the AV mute mode.
Additional Information
| Aspect Ratio | Native: 16:10 |
|---|---|
| Brightness (ANSI Lumens) | 4000 Lumens |
| Contrast Ratio | 2000:1 |
| Resolution (Native / Max) | 1280 x 800() |
| Power Consumption | Normal Mode: 415 W, Standby Mode: 15 W, Standby Mode: 0.3 W |
| Throw Ratio | 1.53 - 3.09:1 |
| Remote Control | Yes |
| Brightness Uniformity | 90% |
| Keystone Correction | Vertical: ± 40° |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Lens | F 2.0 - 3.4 (f = 21.5 - 43.0 mm) |
| Ceiling Mountable | Yes |
| Fan Noise | Normal Mode: 29 dB |
| Rear Screen Projection | Yes |
| Projection Size | 40 - 300" / 1016.00 - 7620.00 mm |
| Lamp Bulb | 1x UHM |
| Watts | 300 W |
| Projection Tilt Option | Yes |
