Details

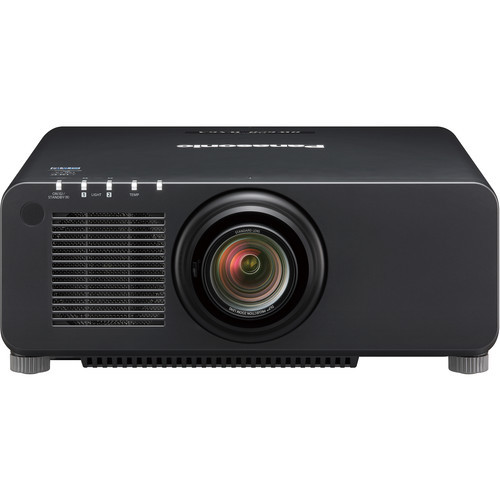

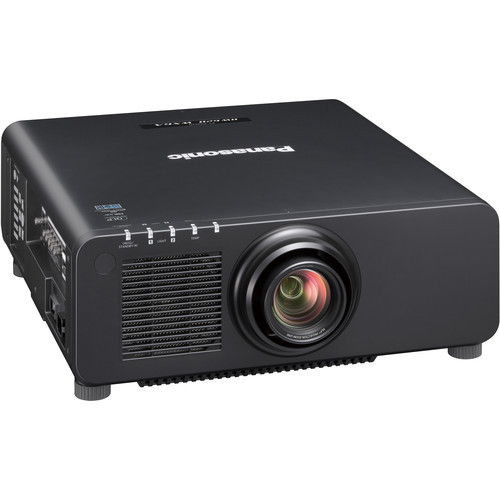

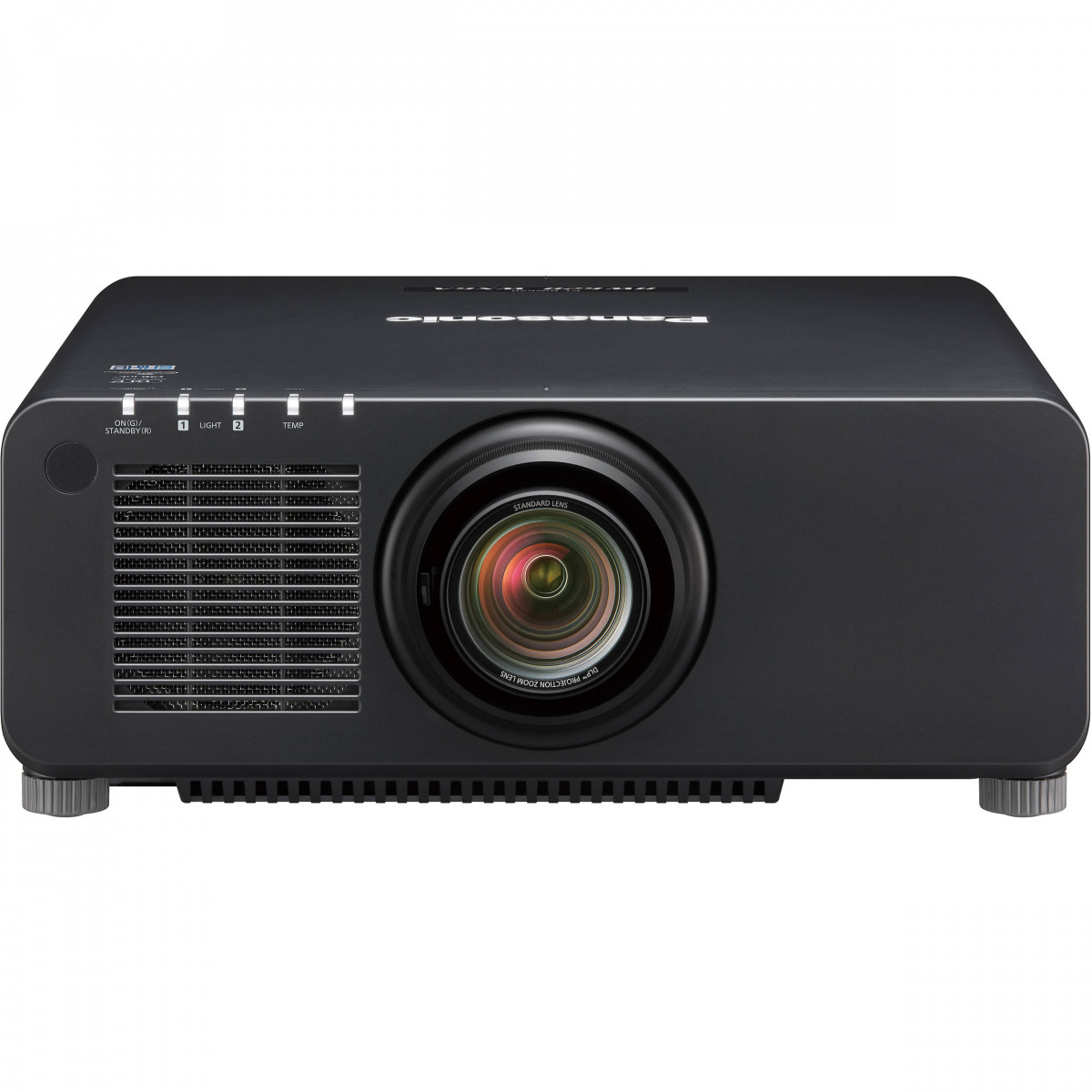

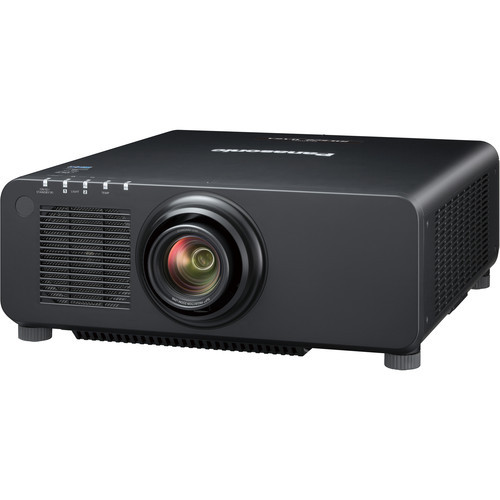

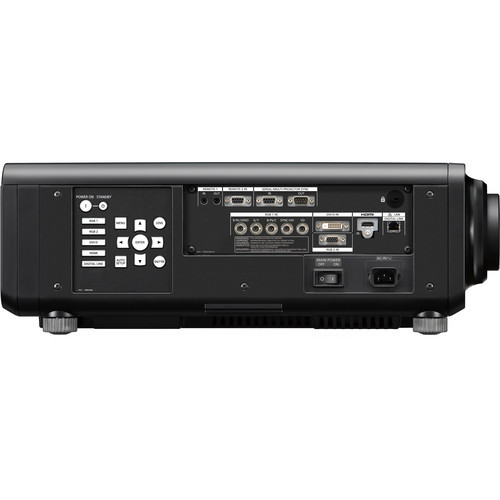

With Panasonics award-winning SOLID SHINE Laser drive at its heart - together with the latest DLP imaging technology - the PT-RZ770/660 Series is primed to deliver unfailingly brilliant pictures in a broad range of venues and applications.
Features
Outstanding white balance and color reproduction
The quartet color harmonizer wheel mechanism captures a wider color space than comparable laser projectors, which allows white to be reproduced realistically on the screen. With conventional projectors it's difficult to achieve an accurate white balance causing images to appear with a distracting greenish tint. Panasonic's quartet color harmonizer eliminates this negative impact by adding an additional yellow segment to the color wheel to produce whites with unparalleled accuracy for natural and realistic picture quality.
Maintain image quality for longer use
Thanks to the long-lasting dual solid state laser modules, there are no lamps which need to be replaced. The image colors and brightness degrades very gradually in consistent, linear fashion. As well as reducing maintenance hassle, out-of-the-box picture quality preserves longer.
Dependable 24/7 operation with failover protection
With the dual drive laser optical engine the laser diodes are grouped into two discrete modules. A failsafe redundancy circuit works to minimize the brightness.
Dynamic light control delivers better contrast
This series directly modulates laser power output to achieve a high contrast with low power consumption. A digitally controlled frame-by-frame scene-linking modulation ensures highly precise output adjustment, while the accurate 10.000:1 contrast ratio is delivered even when bright and dark scenes are frequently interchanging.
Vivid images in bright environments
Panasonics premium system daylight view 3 prevents images from washing cut in well-lit environments and enhances brightness perception in multi-projector mapping applications by adjusting sharpness and gamma curves and correcting colors. The result is a greater visual impact even in challenging conditions.
Detail clarity processor 3 - sharpness in fine details
This unique Panasonic circuit optimizes the sharpness of each image based on the super high, high, medium and low frequency components of the extracted image information. The resulting images are expressed with natural and convincing realism.
Dust-resistant airtight optical block
The optical block of this series is airtight, ensuring consistent, long-lasting image quality without maintenance.
Additional Information
| Aspect Ratio | 16:10 |
|---|---|
| Brightness (ANSI Lumens) | 6,200 lm (Center) / 6,000 lm |
| Contrast Ratio | 10,000:1 |
| Display Type | 2 cm DLP (1) |
| Resolution (Native / Max) | 1280 x 800 |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | Normal: 1050 W, Eco: 770 W, Long Life 1: 480 W, |
| Audible Noise | 35.0 dB |
| Lamp Type | Laser |
| Throw Ratio | 1.80:1 - 2.50:1 |
| Lamp Life | 20000 Hour |
| Lens Shift | Horz & Vert |
| Color | Black |
| Screen Size | 50 in - 600 in |
| Keystone Correction | horizontal, vertical |
| Lens | Powered zoom (throw ratio 1.7–2.4:1), powered focus F 1.7–1.9, f 25.6–35.7 mm |
| Uniformity | 90 % |
