Details
Engage your class with BenQ's WXGA (1280x800) short-throw picture performance! Comparing to 4:3 projections, WXGA widescreen projection boosts your total viewing area by 30% - making more effective use of the whiteboards and blackboards in class.
Features
- WXGA widescreen projection excellence
Engage your class with BenQ's WXGA (1280 x 800) short-throw picture performance! Comparing to 4:3 projections, WXGA widescreen projection boosts your total viewing area by 30% - making more effective use of the whiteboards and blackboards in class. What's more, with sharper, clearer images and less shadow distractions, you'll find your students much better focused in class.
- 2500 ANSI lumens brightness
A 2500 ANSI lumens projection lamp ensures great viewing even is location with low ambient light. The MW814ST is ideal for small-sized meeting room with under 25 people.
- 4000:1 high contrast ratio
The MW814ST boasts a high contrast ratio of 4000:1. High contract ratios translate to razor-sharp detail definition and a broader range of subtle color differences, which makes text is sharper, cleaner, and easy to read.
- World-leading short-throw projection
A global DLP expert, BenQ excels as the number one-selling brand in the worldwide short-throw projector market - with every one out of seven short-throw projector to be of BenQ kind. This undisputed short-throw leader offers picture quality excellence defined by astonishing color performance and well-focused text projection with its very own aspherical lens design.
- Built-in 20W big audio power
The MW814ST features two built-in 10W speakers to help enrich your presentation with top quality audio performances. These speakers are sealed and secured within the projector housing by BenQ's anti-shake design to ensure projection stability at all times.
- Audio in/out
With the built-in speakers, the MW814ST can be used as an audio system when it's on the standby mode. This saves you the trouble as well as the extra budget for getting a separate audio system.
- LAN control with crestron and PJ-Link
LAN control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively - offering them full access and control over every projector directly from their workstations. The MW814ST offers seamless support for the crestron, PJ-Link and AMX LAN control system.
- Readily available teaching templates
To make your teaching job easier, BenQ has added the teaching template function to the MW814ST. Now, with four different line pattern designs to choose from - letter formation, musical staff, worksheet and coordinate chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.
Additional Information
| Aspect Ratio | 16:10 (Native) 4:3, 16:9 |
|---|---|
| Brightness (ANSI Lumens) | 2500 ANSI Lumens |
| Contrast Ratio | 4000:1 |
| Display Type | DLP |
| Resolution (Native / Max) | WXGA (1280 x 800) |
| Video Compatibility | NTSC, PAL, SECAM, HDTV (480i, 480p, 576i, 576p, 720p, 1080i, 1080p) |
| Projection Lens | F = 2.6 f = 6.7 mm |
| Number of Colors | 1.07 Billion Colors |
| Dimensions (WxHxD) | 11.3in. x 4.5in. x 9.2in.(28.7cm x 11.43cm x 23.37cm) |
| Weight | 6.0 lbs. (2.72 kg) |

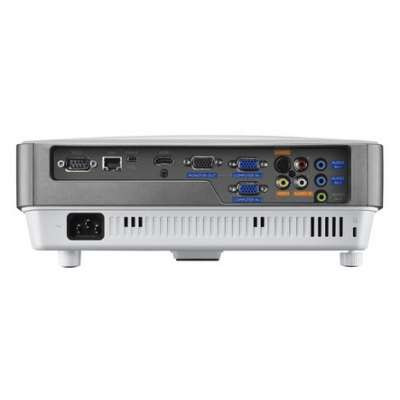

| Inputs | 2 x RGB D-Sub 15pin 1 x HDMI 1 x Composite 1 x S-Video 2 x Stereo Mini Jack 2 x RCA Audio |
| Outputs | 1 x RGB D-Sub 15pin 1 x Stereo Mini Jack |
| Control | 1 x RJ-45 LAN 1 x USB Type B 1 x RS-232 |
| Power Supply | 100 ~ 240 V / 50 ~ 60 Hz |
| Power Consumption | 270W (Normal) 1W (Standby) |
| Audible Noise | 33 dB (Normal) 26 dB (Eco Mode) |
| Lamp Type | 220W |
| Projection Mode | Front, Rear, Ceiling |
| Projection Screen Size (Diagonal) | 80in. ~ 300in. (203.2cm ~ 762cm) |
| Throw Ratio | 0.49:1 |
| Vertical Keystone Correction | +/- 30 Degrees |
| H-Sync Range | 31 ~ 102 kHz |
| V-Sync Range | 23 ~ 120 Hz |
| Audio | 1 x 10W Mono Speaker |
| Menu Languages | Arabic, Bulgarian, Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Italian, Indonesia |
| Lamp Life | 4000 hrs (Normal) 6000 hrs (Eco Mode) |
| Features | Remote Control Batteries Power Cord User Manual CD-ROM Quick Start Guide Warranty Card VGA Cable |
