Details

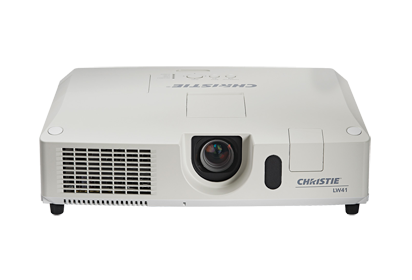

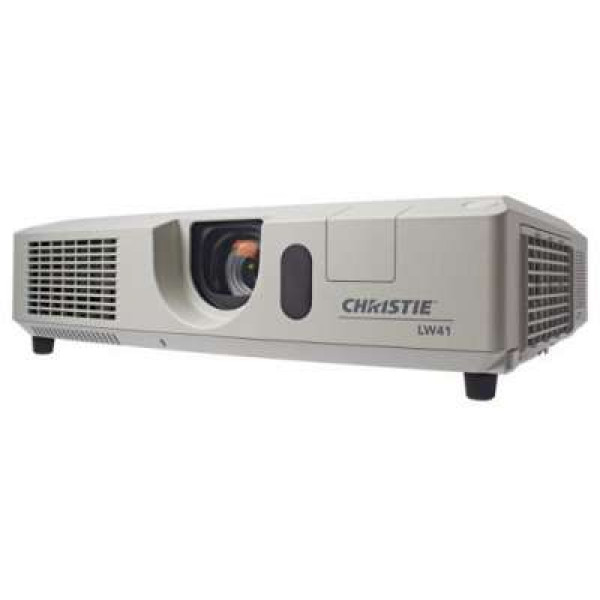

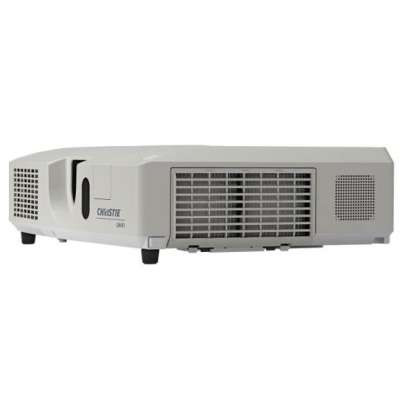

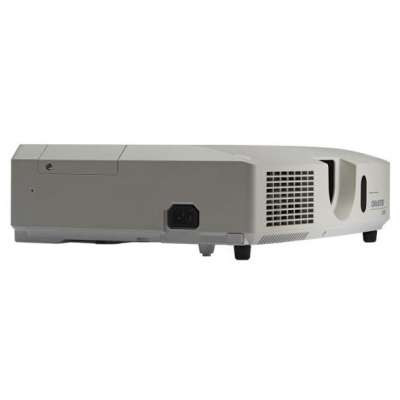

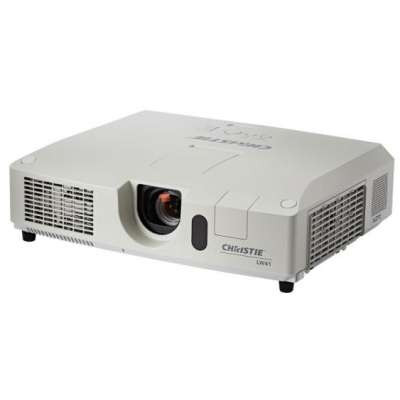

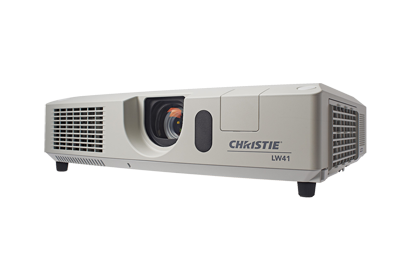

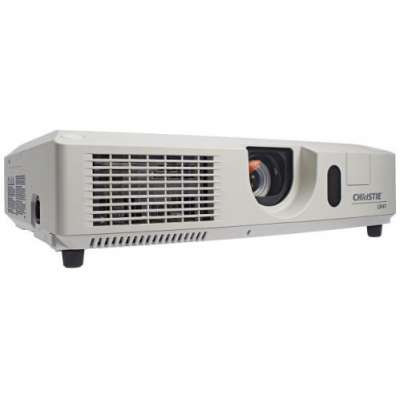

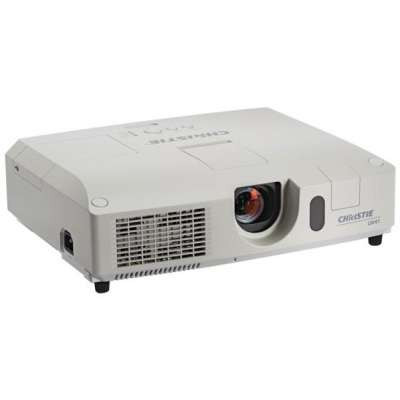

The Christie LW41 is a bright, affordable 3LCD option in WXGA (1280 x 800) resolution. This LCD projector meets ProAV feature requirements in small to medium-sized venues and is ideal for corporate AV, higher education, and house of worship applications or for any organization that needs a full-featured portable WXGA projector in the 4,000 ANSI lumens range. This projector is designed for today’s needs for network capabilities and advanced plug and play features for third party integration.
With flexible installation needs in mind, the Christie LW41 ships standard with a 1.7 x manual zoom lens and 3D Keystone™ geometry correction that can simplify installation and maintenance of the display.
Additional Information
| Aspect Ratio | 16:10 (Native) 4:3, 16:9 |
|---|---|
| Brightness (ANSI Lumens) | 4000 ANSI lumens |
| Contrast Ratio | 1000:1 |
| Display Type | 0.59" Inorganic LCD x 3 |
| Resolution (Native / Max) | WXGA (1280 x 800) |
| Video Compatibility | NTSC, PAL, SECAM, SDTV (480i, 480p, 576i, 576p), HDTV (720p, 1080i, 1080p) |
| Dimensions (WxHxD) | 15.8in. x 4.6in. x 12.5in.(40.13cm x 11.68cm x 31.75cm) |
| Weight | 10.6 lbs. (4.81 kg) |

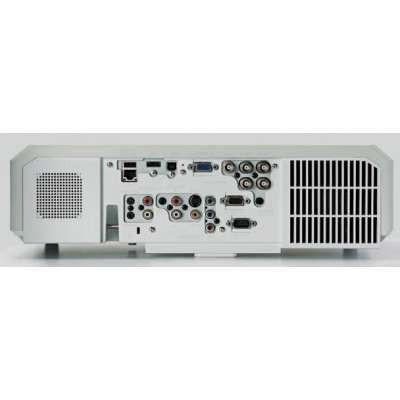

| Inputs | 1 x S-Video 1 x Composite 1 x Component 2 x Stereo Mini Jack 2 x RCA Audio 1 x HDMI 1 x USB Type A 1 x Microphone Jack |
| Control | 1 x RS-232 1 x RJ-45 LAN 1 x USB Type B |
| Power Supply | 100 ~ 120 / 220 ~ 240 V / 50 ~ 60 Hz |
| Power Consumption | 380W |
| Audible Noise | 36 dB (Normal) 30 dB (Eco Mode) |

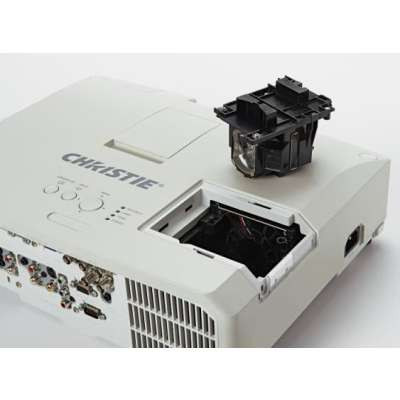

| Lamp Type | 245W UHP |
| Throw Ratio | 1.5 ~ 2.5:1 |
| Vertical Keystone Correction | +/- 30 Degrees |
| Items | Computer Cable Remote Control Lens Cover Power Cord User Manual Security Label |
| Features | AMX Device Discovery; blackboard/whiteboard mode Daytime mode 3D Keystone geometry correction Closed caption (NTSC and comp |
| Optical Zoom | 1.7:1 |
| Lamp | 120 Days / 500 Hrs Warranty |
| Projector | 3 Year Warranty |
| Approvals | FCC, EN55022, EN55024, IEC, UL, CSA, RoHS, WEEE, CCC, CE, cULus, GoST-R, C-Tick |
| Operating Temperature | 41�F ~ 95�F (5�C ~ 35�C) |
| Horizonal Keystone Correction | +/- 30 Degrees |
| Operating Humidity | 10 ~ 85% (Non-Condensing) |
| Dot Clock | 27 ~ 162 MHz |
