Details
NEC's PA622U is a 6200 lumen installation projector equipped to take on the most demanding integration projects. Enjoy design and installation flexibility with a complete line of optional bayonet style lenses, tilt-free installation capabilities and horizontal/vertical lens shift. What's more, uncompressed high definition video can be projected via integrated HDBaseT.
Product Highlights
- Brightness of 2800 Lumens
- XGA 1024 x 768 Resolution
- 10,000:1 Contrast Ratio
- BrilliantColor and DLP Technology
Additional Information
| Brightness (ANSI Lumens) | 2800 normal |
|---|---|
| Contrast Ratio | 10,000 |
| Display Type | DLP (0.55" DMD) |
| Resolution (Native / Max) | Native XGA 1024 x 768 ; Maximum WUXGA 1920 x 1200 |
| Video Compatibility | NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
| Dimensions (WxHxD) | 14.5 x 11.5 x 4.3 in. |
| Weight | 7.7 lbs. |
| Inputs | 3.0A/1.5A |
| Power Consumption | (Normal/ECO Mode/Standby/Standby Power Saving) 257W / 187W / 2.5W / 0.2W |
| Lamp Type | 257W AC / 187W eco |
| Throw Ratio | 1.6 – 2.72:1 |
| Vertical Keystone Correction | Vertical (Automatic/Manual) |
| H-Sync Range | 15-100 kHz |
| V-Sync Range | 50-120 Hz |
| Audio | 20W speaker |
| Lamp Life | 4500 hours normal / 10,000 hours eco |
| Projection Distance | 3.0 to 52.4 ft. / 0.9 to 15.97m |
| Operating Temperature | 41-104°F / 5-40°C |
| Horizonal Keystone Correction | +/- 30% Horizontal |
| Resolution | Native XGA 1024 x 768 |
| Screen Size | 30 to 300 in. / 0.76 to 7.6m |
| Operating Humidity | 20-80% non-condensing |
| Keystone Correction | +/- 30% Horizontal & Vertical (Automatic/Manual) |

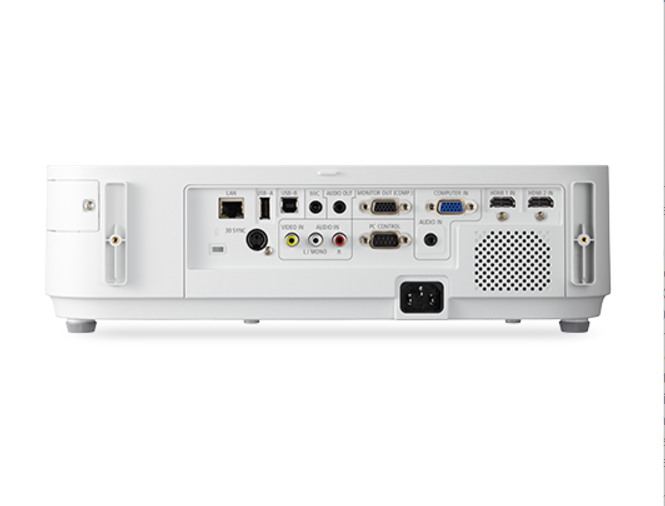

| InputsOutputs | RGB1(analog) VGA 15-pin D-sub |
| Power Requirements | 100-240V AC, 50/60 Hz |
| Lens | Zoom 1.7 |
| Storage Temperature | -14-122°F / -10-50°C |
| Fan Noise | 38 dB / 29 dB eco |
