Details

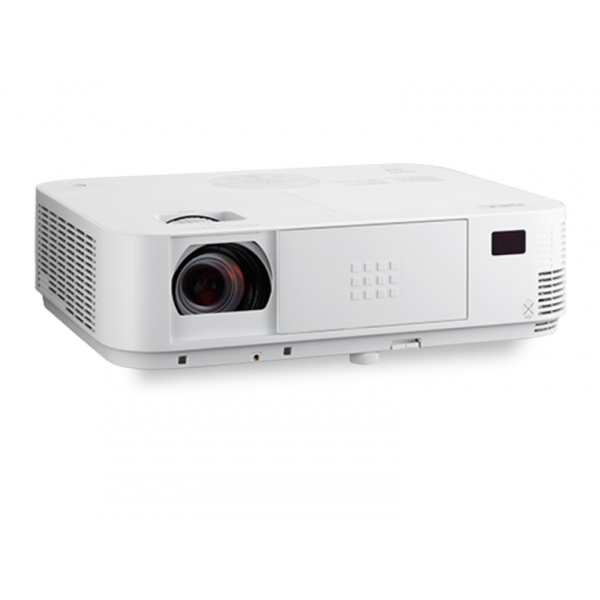

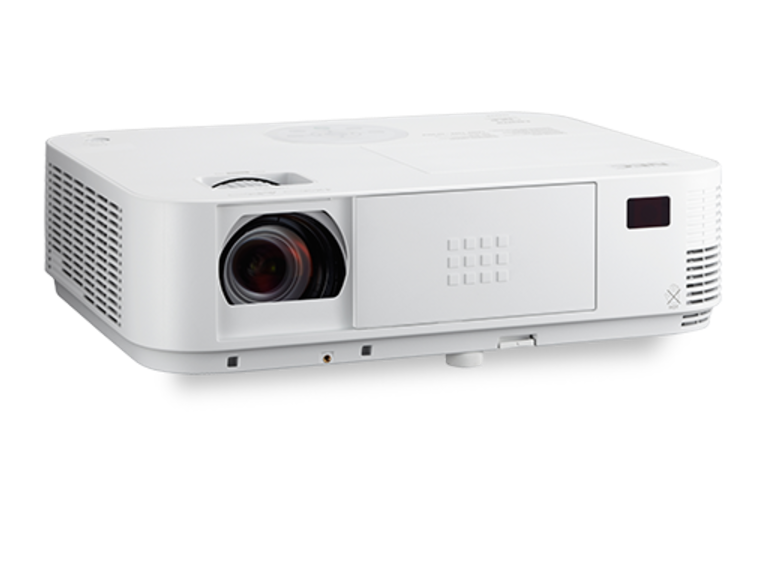

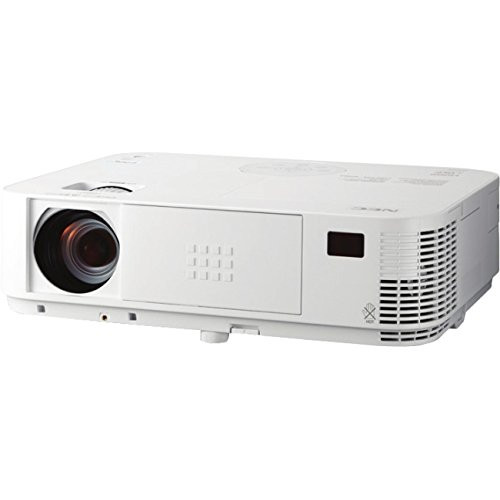

M Series projectors using the latest DLP technology from Texas Instruments provide all the essential features that you need to connect with your audience. The 2800-lumen, XGA (1024 x 768) native resolution NEC M283X is ideal for education and small-to-medium-sized business environments that need essential features, including bright images, automatic technologies and eco-friendly appeal. The M283X offers lamp life up to 10,000 hours and a high contrast ratio of up to 10,000:1, while Crestron Roomview aids in emergency messaging. The versatile, color-coded connections to various sources aid in classroom and conference room use, including those in healthcare environments where its DICOM Simulation technology can be utilized. Full 3D display from computer and video sources. AutoSense intuitively syncs the projector with most computer signals and features one touch optimization. The environment is kept in mind with ECO Mode technology, a carbon savings meter, extended filter life, and energy-saving features such as quick startup and direct power off. Take in room collaboration to a new level by connecting wirelessly and displaying information simultaneoulsy from up to 16 devices.
Product Highlights
- Brightness of 2800 Lumens
- XGA (1024 x 768) Native Resolution
- 1.5 to 2.5:1 Throw Ratio
- VGA, Composite, 2x HDMI Inputs
Additional Information
| Brightness (ANSI Lumens) | 2800 normal |
|---|---|
| Contrast Ratio | 10,000:1 |
| Display Type | DLP (0.55" DMD) |
| Resolution (Native / Max) | XGA 1024 x 768-native ; WUXGA 1920 x 1200-max |
| Video Compatibility | NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
| Dimensions (WxHxD) | 14.5 x 11.5 x 4.3 in. |
| Weight | 7.7 lbs. |
| Inputs | 3.0A/1.2A |
| Power Consumption | (Normal/ECO Mode/Standby/Standby Power Saving) 255W / 170W / 2.6W / 0.2W |
| Lamp Type | 200W AC / 120W eco |
| Throw Ratio | 1.5 - 2.55:1 |
| Vertical Keystone Correction | +/- 30° vertical |
| H-Sync Range | 15-100 kHz |
| V-Sync Range | 50-120 Hz |
| Audio | 20W speaker |
| Lamp Life | 4500 hours normal / 10,000 hours eco |
| Projection Distance | 3.0 to 52.4 ft. / 0.9 to 15.97m |
| Operating Temperature | 41-104°F / 5-40°C |
| Horizonal Keystone Correction | +/- 25° horizontal |
| Resolution | Native XGA 1024 x 768 |
| Screen Size | 30 to 300 in. / 0.76 to 7.6m |
| Operating Humidity | 20-80% non-condensing |
| Keystone Correction | +/- 25° horizontal, +/- 30° vertical |

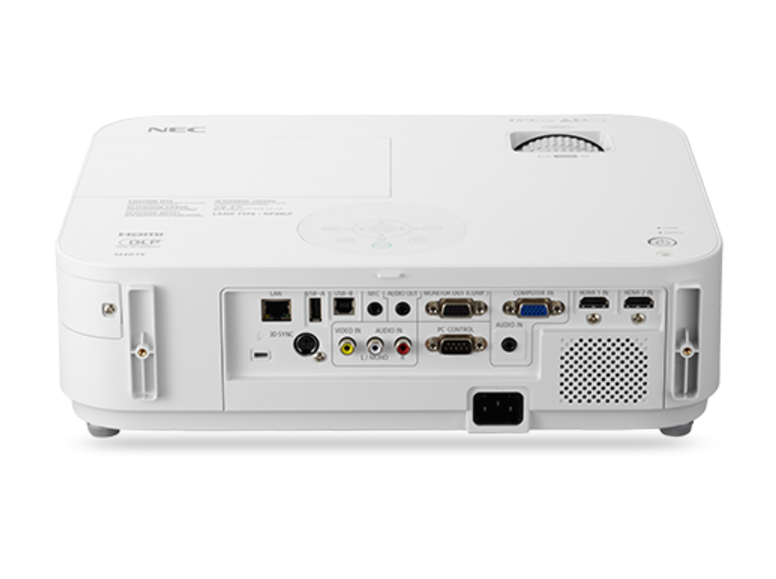

| InputsOutputs | RGB1(analog) VGA 15-pin D-sub |
| Power Requirements | 100-240V AC, 50/60 Hz |
| Lens | Zoom 1.7 |
| Storage Temperature | -14-122°F / -10-50°C |
| Fan Noise | 31 dB normal / 27 dB eco |
