Details

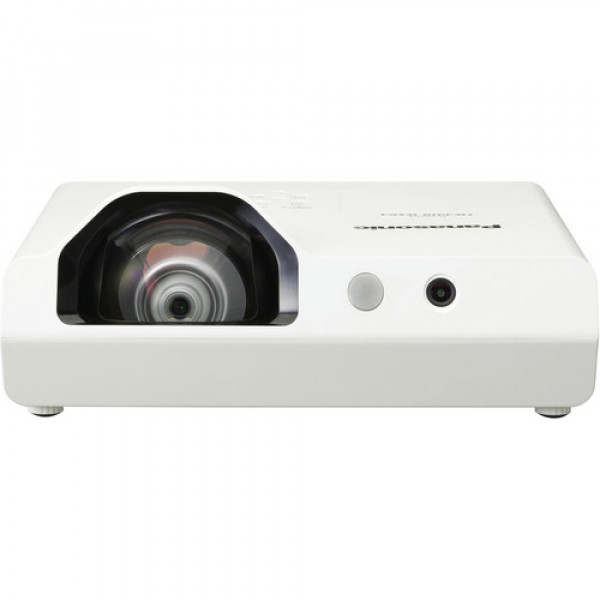

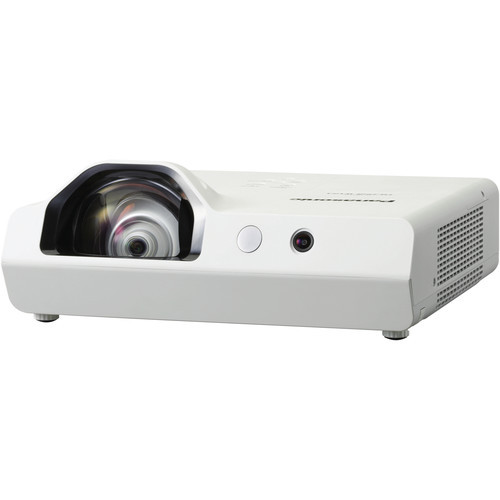

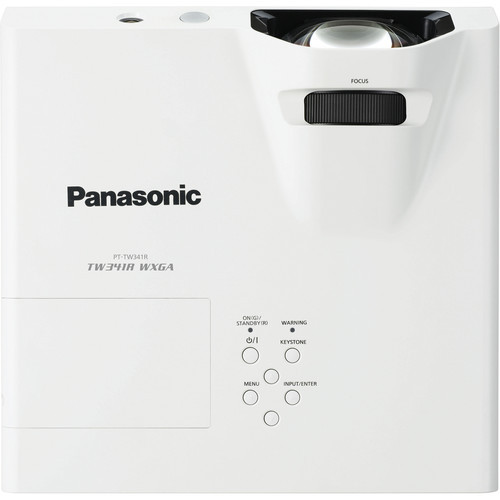

Offering large-screen projection at a short distance, the PT-TW341R Series is ideal for small or short spaces. Its interactive function contributes to more effective presentations.
Features
Memory viewer function
In addition to JPEG/BMP image and text files, PDF files can be projected by simply inserting a USB memory device containing the data into the USB memory port. Now you can start your presentation without having to connect to a computer.
USB display function for easy projection using a USB cable
USB display outputs images and sounds from the computer without the need to install any software. Simply connect to the USB port with a single USB cable and start your presentation.
Auto input signal search
The Auto Input Signal Search function automatically detects the input signal and selects the input channel based on the signal. This function lets you start a presentation without any complicated setup required.
Color-board and blackboard (Green) modes
Color-board and blackboard (Green) modes adjust the colors to provide high-quality projection possible in rooms that don't have a screen.
Equipped with an HDMI input terminal and abundant interfaces

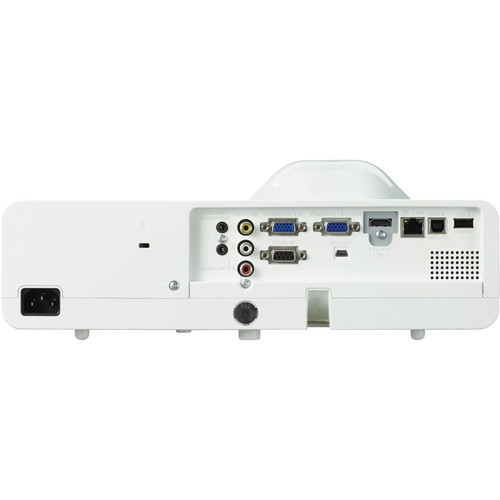

Extensive interfaces include an HDMI input terminal, 2 sets of computer (RGB) input terminals, a wired LAN terminal, and a serial (RS-232C) terminal for external control. These features support a wide range of system architectures for portable or ceiling-mounted use.
10-Watt speaker enables audio playback directly from the projector
These portable projectors feature high-output 10-watt speaker that produces a high sound volume without requiring external speakers.
Easy lamp and air filter replacement simplifies maintenance
For easier maintenance, you can replace the lamp from the top and the air filter from the side, even after the projector is installed on the ceiling. This eliminates the need to detach the projector from its mounting bracket in ceiling-mounted applications.
Additional Information
| Aspect Ratio | 16:10 |
|---|---|
| Brightness (ANSI Lumens) | 3200 Lumens |
| Contrast Ratio | 10,000:1 |
| Power Consumption | 300 W |
| Throw Ratio | 0.46:1 |
| Lamp Life | 5000 Hours |
| Lamp | 230 W |
| Operating Temperature | 41 to 95°F (5 to 35°C) |
| Resolution | 1280 x 800 (WXGA) |
| Operating Humidity | 20 - 80% |
| Lens | f/1.8 (f = 6.08mm) |
| Uniformity | 80% |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Projection Size | 50 - 100" / 127.00 - 254.00 cm |
| Display System | -Chip 0.59 LCD |
