Details

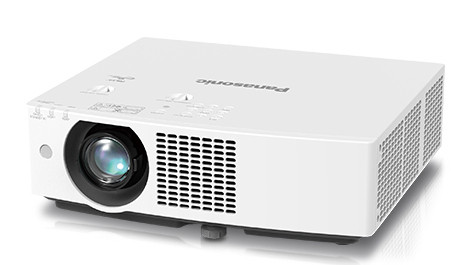

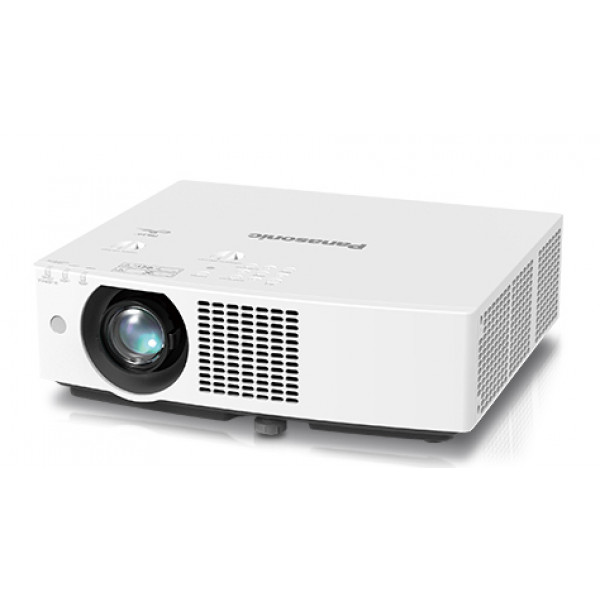

Designed to support a wide range of education and business applications, the PT-VMZ40U from Panasonic features a laser light-source enabling long 20,000-hour operation to ensure lasting reliability, while delivering WUXGA resolution with 4,500 lumens of brightness and supporting a 4K Signal Input.
Utilizing Panasonic's cooling technology - refined for higher-brightness models - results in the PT-VMZ40 being one of the world’s smallest and lightest compact design with a brightness of 5,000 lumens. This laser projector features 1.6x zoom lenses for short throw-distances and supports wide V/H lens-shift to achieve flexible installation in small classrooms, meeting rooms, and limited spaces where multiple projectors are installed in one room.
Applications
- Education and Training
- Office and Boardroom
Features
- 1.6x zoom lens, V/H lens shift and short 1.09:1 throw-ratio.
- SOLID SHINE laser light-source delivers 20,000 hours of consistent brightness and color accuracy.
- Easy to use wireless projection from laptop, iOS or Android devices.
- DIGITAL LINK connection, based on HDBaseT™, transmits video, audio, and control signals through a single LAN cable for distances of up to 150m (492ft.) for Full HD video and 50m (164 ft.) for 4K video, making installation simple and cost-effective with consistently high quality.
- Bright and Compact:
- 5,000 lm at WUXGA from a compact, stylish
- 17.0 lbs body, bringing dynamic images to any space
- Supreme Efficiency:
- SOLID SHINE Laser light-source delivers
- 20,000 hours of consistent brightness and color accuracy
- Flexible Installation:
- 1.6x zoom, V/H lens shift, and short
- 1.09:1 throw-ratio liberates installation flexibility
- Future-ready Connections:
- Supports 4K signal input via HDMI® and DIGITAL LINK, separate LAN terminals, Supports signals up to 4K/30p.
- Features Notes:
- Replacement period is stated maximum value, at which time brightness will have decreased to 50 %. Usage environment affects light-source replacement cycle.
- Supports signals up to 4K/30p.
Specifications tentative
- Model: PT-VMZ40
- Projector Type: LCD Projector
- LCD Panel:
- Panel Size: 16 mm (0.64 in) diagonal (16:10 aspect ratio)
- Display Method: Transparent LCD panel (× 3, R/G/B)
- Drive Method: Active matrix method
- Pixels: 2,304,000 (1920 × 1200) × 3, total of 6,912,000 pixels
- Light Source: Laser Diode
- Light output: 4,500 lm
- Time until light output declines to 50 %: 20,000 hours (NORMAL)
- Resolution: 1920 x 1200 pixels
- Contrast 1: 3,000,000:1 (all white/all black) (Input signals: PC, LIGHT POWER: NORMAL, PICTURE MODE: DYNAMIC, DAYLIGHT VIEW: OFF, DYNAMIC CONTRAST: ON, AUTO POWER SAVE: OFF)
- Screen size (diagonal): 0.76–7.62 m (30–300 in), 16:10 aspect ratio
- Center-to-corner uniformity 1: 85 %
- Lens:
- 1.6 × Manual zoom (Throw ratio: 1.09–1.77:1)
- Manual focus lens, F = 1.60–2.12, f = 15.30–24.64 mm
- Lens shift:
- Vertical ( from center of screen): 0 % – +44 % (Manual) [TBD]
- Horizontal ( from center of screen): [TBD]
- Keystone correction range: Vertical: ±25°, Horizontal: ±35° [TBD]
- Installation: Horizontal/vertical, free 360-degree installation
- Terminals:
- HDMI 1/2 IN: HDMI 19-pin × 2 (Compatible with HDCP 2.2, Deep Color, 4K signal input)
- COMPUTER 1 IN: D-sub 15-pin (female) × 1 (RGB/YPBPR/YCBCR)
- COMPUTER 2 IN / MONITOR OUT: D-sub 15-pin (female) × 1 (RGB/YPBPR/YCBCR) (input/output switching)
- VIDEO IN: Pin jack × 1
- AUDIO 1/2 IN: M3 stereo mini-jack × 2
- AUDIO 3 IN: Pin jack (L/R) × 1
- VARIABLE AUDIO OUT: M3 stereo mini-jack × 1
- SERIAL IN: D-sub 9-pin × 1 for computer control (RS-232C compliant)
- LAN: RJ-45 × 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2)
- USB CONNECTOR: USB connector (Type A) × 1 for Memory Viewer function, power supply (DC 5 V, maximum 2 A), optional wireless module AJ-WM50 [TBD]
- Power supply: AC 100 V–240 V, 50/60 Hz
- Power consumption: [TBD]
- Built-in speaker: 10 W monaural
- Cabinet materials: Molded plastic
- Filter: Included (Filter replacement cycle: TBD)
- Operation noise: NORMAL: 38 dB, QUIET: 29 dB [TBD]
- Dimensions (W × H × D):
- 15 23/32" × 4 17/32" × 13 11/16" (399 mm × 115 mm × 348 mm)
- 15 23/32" × 5 1/4" × 13 11/16" (399 mm × 133 mm × 348 mm) (With feet at shortest position)
- Weight: 17.0 lbs (Less than 7.7 kg)
- Operating environment:
- Operating temperature: 32–113 °F (0–45 °C)
- Operating humidity: 20–80 % (No condensation)
- Applicable software: Multi Monitoring & Control Software, Presenter Light for Windows®, Wireless Projector for iOS/Android™, Logo Transfer Software
