Details

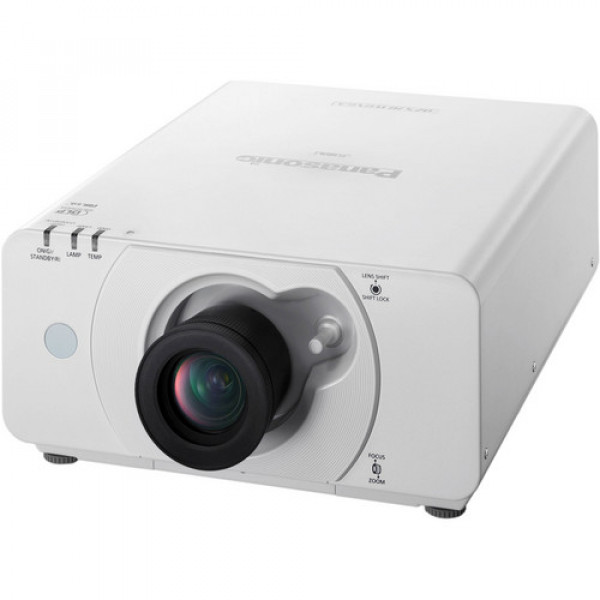

The 1-chip DLP PT-DZ570 Series projectors allow high-quality images to be projected in a wide range of operating conditions and applications. The PT-DZ570U provides unsurpassed image quality powered by 4,000 lumens, WUXGA (1920 x 1200) full HD+ resolution and RGB Booster for excellent color reproduction. Calibration is made easy with the built in Waveform Monitor.
Features
RGB booster significantly improves color reproduction
The RGB booster achieves high image quality with levels of color reproduction and brightness that make each color stand out. It combines Panasonic's proprietary vivid color control technology with a lamp modulation drive system for a 1-chip DLP projector that produces bright and vivid colors.
Vivid color control
This unique control technology optimizes the use of the color segment areas of the color wheel. It increases the brightness of each RGB color by minimizing the unallocated portions between the colors, to achieve truly vivid coloring.
Lamp modulation drive system
With the advanced lamp modulation technology, the projector is now able to control the lamp intensity for each of the red, green, blue and white segments of the color wheel separately. Because the actual light output is controlled in relation to each color segment, light usage is optimized and color balance is obtained without lowering the brightness. This results in bright, vivid images with increased color fidelity.
Full HD-ready WUXGA resolution
In response to the increasing popularity of widescreen image viewing, including Blu-ray content, the PT-DZ570 features native WUXGA resolution for high-definition viewing. This brings you lifelike projection of intricate, highly detailed images.
Waveform monitor function
When the output level of the source device fluctuates due to the performance of the device or its cable connections, the original black and white levels of the image content cannot be reproduced correctly. With the PT-DZ570, you can view the waveforms on the screen and adjust the settings either automatically or manually as you prefer.
Web browser control over a wired LAN
The PT-DZ570 series can be easily operated remotely over a LAN, because it is done using the computer's web browser. Furthermore, the projector sends an email message to notify the operator when an error has occurred, or a lamp needs to be replaced.
Side-by-side function
The PT-DZ570 can simultaneously display images from two sources onto a single screen. For example, you can display a PC image on the left and a video image on the right. Taking advantage of the wide-screen projection, this function gives you a host of new application possibilities to explore.
Additional Information
| Aspect Ratio | Native: 16:10 |
|---|---|
| Brightness (ANSI Lumens) | 4000 Lumens |
| Contrast Ratio | 2000:1 |
| Resolution (Native / Max) | 1920 x 1200 (WUXGA) |
| Power Consumption | Normal Mode: 415 W Standby Mode: 15 W Eco Mode: .3 W |
| Throw Ratio | 1.45 - 2.94:1 |
| Operating Temperature | 32 to 113°F (0 to 45°C) |
| Remote Control | Yes |
| Operating Humidity | 20 - 80% |
| Keystone Correction | Vertical: ± 40° |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| HDTV Compatibility | 480p |
| Ceiling Mountable | Yes |
| Pixels | 2,304,000 |
| Fan Noise | Normal Mode: 29 dB |
| Rear Screen Projection | Yes |
| Projection Size | 40 - 300" / 1016.00 - 7620.00 mm |
| Lamp Bulb | 1x UHM |
| Format | NTSC |
| Display System | 1-Chip DLP |
| Watts | 300 W |
| Projection Tilt Option | Yes |
