Details

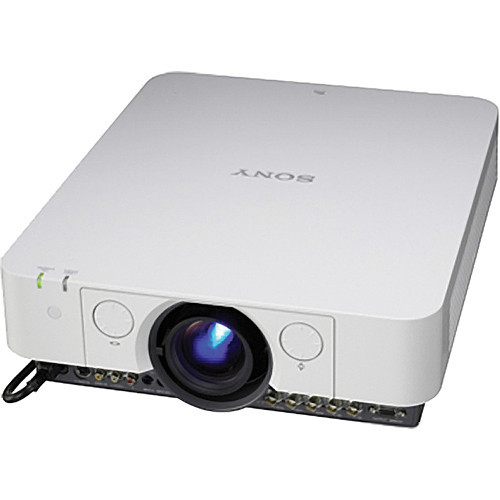

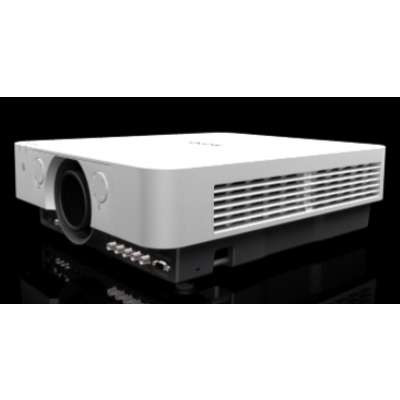

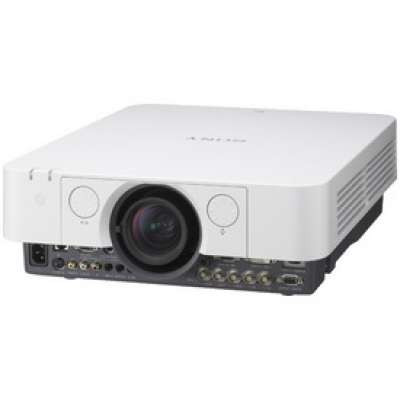

The VPL-FH30 is designed to fit smoothly into almost any environment where a high-quality projector is required. Its brightness, zoom and throw range, coupled with its wide lens shift range, mean it can perform where other projectors would struggle - even in high ambient light. Once installed, the VPL-FH30 has excellent image capabilities and a long lifespan that delivers low total cost of ownership. Sony's BrightEra technology improves and maintains color purity throughout the life of the system by protecting the LCD panels against harmful ultra violet light. Clever features such as synchronized lamp and filter replacement cycles reduce costs and downtime. Featuring the usual wide range of inputs, an external monitor connection for the presenter's convenience, and advanced projection capabilities such as side-by-side image projection and DICOM medical training, the VPL-FH30 is an obvious projector choice for venues that demand quality and practicality.
Features
- 3-LCD BrightEra Panel technology
Sony's BrightEra Panel technology gives more accurate color rendition, higher brightness and longer lifespan for a lower total cost of ownership.
- Ultra high resolution
The VPL-FH30's WUXGA 16:10 format resolution delivers absolute best image quality.
- Very high brightness
With very high brightness, the VPL-FH30 gives a clearer image in high ambient light, making it highly suitable for larger venues.
- Wide zoom range and throw ratio as standard
The standard lens has a wide zoom capability and throw ratio, offering more flexibility over the positioning of the projector, which can installed closer to or further away from the screen.
- Wide lens shift range
The VPL-FH30's wide lens shift range means that the projector can be positioned closer to the ceiling, or horizontally offset to avoid ceiling obstacles.
- Long lamp replacement time
Longer lamp life means fewer visits by maintenance personnel and lower total cost of ownership.
- Lamp/filter replacement cycles synchronized
Synchronized lamp and filter replacement effectively halves the number of visits needed to maintain the projector in peak operating condition.
- Side by side image projection
Side by side twin image gives you the ability to project from two inputs at the same time, making the projector ideal for applications like video conferencing and DICOM medical training.
- Wide range of image adjustments
This wide range of image adjustments allows the projector to be installed in almost any location. Where equipment is being upgraded, installers are more likely to be able to use existing mounts.
- User panel alignment
Pixel alignment shifts the entire image or desired range for complete color correction.
- Color matching
The VPL-FH30 offers brightness and color matching adjustment to the original image for complete image accuracy.
Additional Information
| Aspect Ratio | 16:10 (Native) 4:3, 16:9 |
|---|---|
| Brightness (ANSI Lumens) | 5000 ANSI lumens (High Mode) 4000 ANSI lumens (Normal) |
| Contrast Ratio | 2000:1 |
| Display Type | 0.76" LCD x 3 |
| Resolution (Native / Max) | WUXGA (1920 x 1200) |
| Video Compatibility | NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM, HDTV (480i, 480p, 576i, 576p, 720p, 1080i, 1080p) |
| Dimensions (WxHxD) | 15.3in. x 5.8in. x 18.7in.(38.86cm x 14.73cm x 47.5cm) |

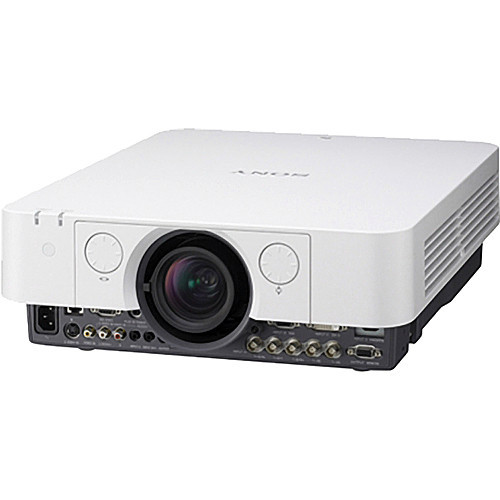

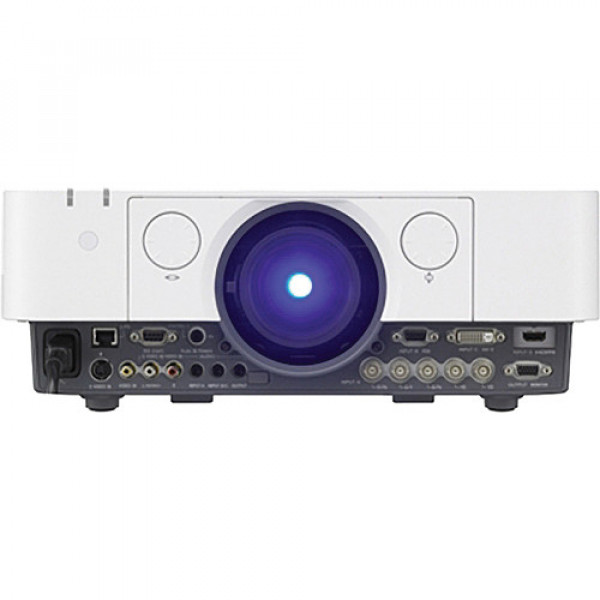

| Inputs | 1 x RGB D-Sub 15pin 5 x BNC 2 x Stereo Mini Jack 1 x DVI-D 1 x HDMI 1 x S-Video 1 x Composite |
| Outputs | 1 x RGB D-Sub 15pin 1 x Stereo Mini Jack |
| Control | 1 x RS-232C 1 x LAN RJ-45 |
| Power Supply | 100 ~ 240 V / 50 ~ 60 Hz |
| Power Consumption | 380W (Normal) 400W (Maximum) 10W (Standby: Normal) 0.3W (Standby: Low Mode) |
| Lamp Type | 275W |

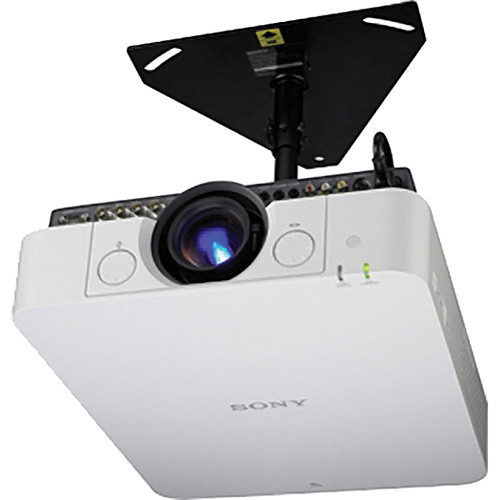

| Projection Mode | Front, Rear, Ceiling |
| Projection Screen Size (Diagonal) | 40in. ~ 600in. (101.6cm ~ 1524cm) |
| Vertical Keystone Correction | +/- 5 Degrees |
| H-Sync Range | 14 ~ 93 kHz |
| V-Sync Range | 47 ~ 93 Hz |
| Menu Languages | English, Dutch, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese |

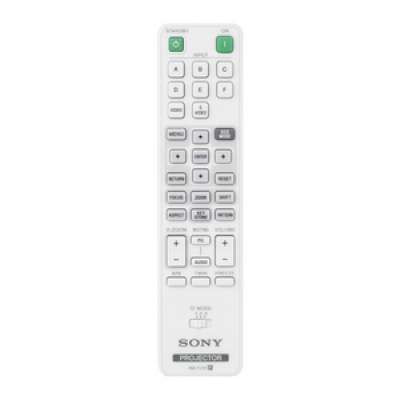

| Items | Remote Control Batteries Power Cord Cable Clamp Quick Reference Manual Warranty Card Security Label Operating Instruction |
| Lamp Life | 3000 hrs (High Lamp Mode) 4000 hrs (Normal) |
| Optical Zoom | 1.6:1 |
| Lens Shift | Vertical: + 60% Horizontal: +/- 32% |
| Operating Humidity | 35 ~ 85% (Non-Condensing) |
