Details
The Christie DWU600-G offers unsurpassed value and is a perfect fit for a variety of applications. Its single lamp design lowers total cost of ownership by reducing maintenance and energy cost.
Features
- single-lamp design
- 1DLP technology for excellent image quality and reliability
- built-in color matching for a more uniform image in a multiple projector configuration
- blending and warping capabilities for curved surfaces using the optional Dual Processor Warp Module
- 24/7 use capability
- 2,000 hours long lamp life contributes to a low cost of ownership
- filter-free and dust-sealed for low maintenance and costs
- eco-friendly features
- Dynamic Contrast, which enhances images by increasing the contrast ratio to 4000:1
- an optional wireless module for device flexibility and easy presentation set up
- DICOM simulation mode for training purposes
| Brightness |
|
| Contrast |
|
| Display technology and resolution |
|
| Lamp |
|
| Inputs |
Standard
Signals
|
| Pixel clock |
|
| Scan rates |
|
| Outputs |
|
| Control and networking |
|
| Optical system |
|
| Lenses |
|
| Offsets |
|
| Standard accessories |
|
| Optional accessories |
|
| Power requirements |
|
| Dimensions and weight |
|
| Operating environment |
|
| Regulatory approvals |
|
Additional Information
| Aspect Ratio | 16:10 (Native) 4:3, 16:9 |
|---|---|
| Brightness (ANSI Lumens) | 6750 ANSI lumens |
| Contrast Ratio | 4800:1 |
| Display Type | 0.67\" DMD DLP |
| Resolution (Native / Max) | WUXGA (1920 x 1200) |
| Dimensions (WxHxD) | 17.1in. x 8.2in. x 15.3in.(43.43cm x 20.83cm x 38.86cm) |
| Weight | 33.7 lbs. (15.29 kg) |
| Inputs | 1 x HDMI 1 x DVI-D 1 x DisplayPort 1 x HD15 1 x Composite 1 x S-Video 1 x Component 1 x USB Type A |
| Outputs | 1 x HD15 |
| Control | 1 x RS-232 1 x RJ-45 LAN 1 x USB Type B |
| Power Supply | 100 ~ 240 V / 50 ~ 60 Hz |
| Power Consumption | 510W (Maximum) 405W (Eco Mode) |
| Lamp Type | 465W NSH |
| Projection Mode | Front, Rear, Ceiling |
| Throw Ratio | 1.22 ~ 1.52:1 |
| H-Sync Range | 15 ~ 100 kHz |
| V-Sync Range | 24 ~ 85 Hz |

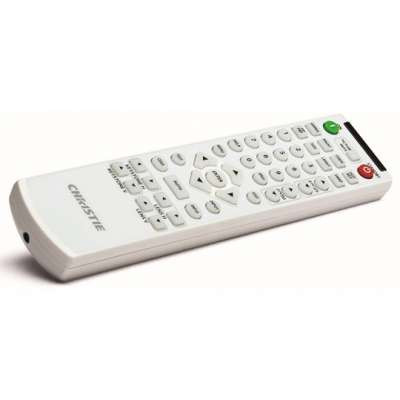

| Items | Remote Control Power Cord User Manual |
| Lamp Life | 2000 hrs (Normal) 2500 hrs (Eco Mode) |
| Lens Shift | Vertical: +/- 100% Horizontal: +/- 20% |
| Lamp | 3 Year Warranty |
| Projector | 3 Year Warranty |
| Approvals | FCC Class A, CE, CCC, KC, EAC, PSE, CU, SABS, BIS and RCM, RoHS, REACH, WEEE |
| Operating Temperature | 40�F ~ 95�F (4�C ~ 35�C) |
| Operating Humidity | 0 ~ 90% (Non-Condensing) |
| Dot Clock | 162 MHz |
