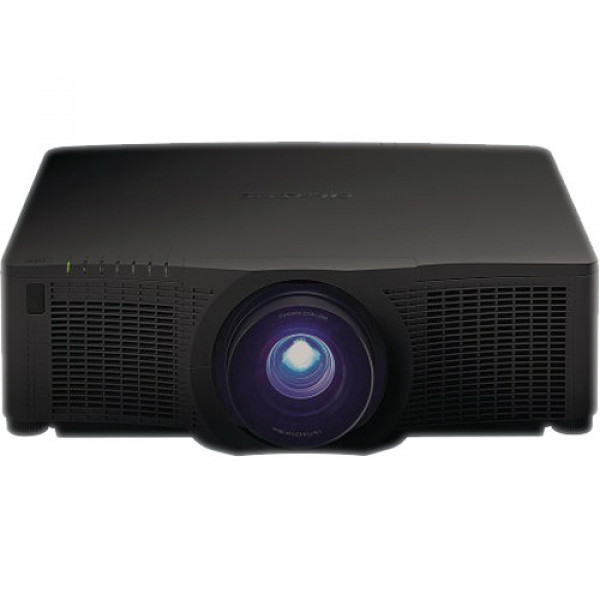

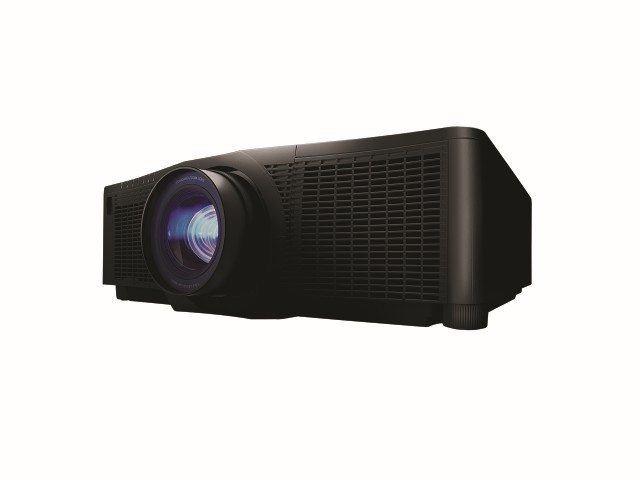

The Christie Q Series takes projectors to a new level of high-brightness to bring you the industry’s highest-quality 1DLP projector. Deliver presentations and video content clearly, with the image quality you expect from Christie. We offer a range of projection options with sleek overall style and high-performance features. Experience versatile, affordable and superior image processing with the Christie Q Series. When coupled with our Ultra Short Throw option, the 0.38:1 throw ratio gives you brilliant, high-resolution images to meet the tightest space requirements without requiring additional wall structure or support.
- Proven DLP technology
- Excellent image quality
- Reliability and versatility
- Energy-saving features
- Low maintenance costs
- High-performance features
- DICOM simulation mode for training purposes
| Image |
Brightness
- 7,900 center (7,500 ANSI) lumens
Contrast
Uniformity
|
| Display |
Type
Native resolution
|
| Lamp |
Type
Life
- Up to 2000 hours in standard mode
- Up to 4000 hours in eco mode*
- Up to 1000 hours in portrait mode
|
| Input |
Standard
- Computer D-sub 15 pin mini jack x1
- 5BNC connector x1
- BNC connector x1 (composite)
- HDMI connector x2
- DVI-D connector x1
- RJ-45 x1 (HDBaseT)
- D-sub 9 pin x1 (RS232c)
- RJ-45 x1 (LAN)
- USB type A connector x1 (optional wireless USB or PC-less)
- Wired remote control (3.5mm)
- 5BNC connector x 1
- BNC connect x (composite)
Signals
- 525i(480i)
- 525p(480p)
- 625i(576i)
- 1125i(1080i @ 50/60)
- 750p(720p @ 50/60)
- 1125p(1080p @ 50/60)
Pixel clock
|
| Output |
Standard
- Computer out D-sub 15 pin mini jack x1
- Wired remote control (3.5mm)
Control & networking
- RJ-45 x1 (LAN)
- RJ-45 x1 (HDBaseT)
- D-sub 9 pin x1 (RS232c)
|
| Lenses |
Offsets
- Vertical: +135 / -50%
(+105 / -50% with extra short throw zoom lens)
- Horizontal: +/-22%
Zoom
- Extra long throw zoom lens (5.7-9.1)
- Extra short throw zoom lens (0.8-1.0)
- Short throw zoom lens (1.2-1.8)
- Standard zoom lens (1.7-2.6)
- Middle throw zoom lens (2.5-3.8)
- Long throw zoom lens (3.7-5.9)
|
| Accessories |
Standard
- Power cord (US cord, 3m) / (Euro cord, 3m)
- Power cord (China cord, 3m only for China models)
- RGB cable (2m)
- Wireless remote control / AA" batteries x2
- Adapter cover
- Ferrite core and band x2
- Cable tie x2
- User's Manual
- User’s Manual CD x1
- Safety Guide
- Quick Setup Guide
- Network Quick Setup Guide
- Operating Guide
- Network Guide
- Instant Stack Guide
- Technical Guide
- Software License Agreement
Optional
- Replacement lamp - P/N 003-005160-01
- Replacement hybrid filter - P/N 003-004775-XX
- Optional wireless dongle (USB) - P/N 121-116109-XX
- Replacement remote
|
| Enhanced feature sets |
- 2 HDMI input
- eClarity & HDCR
- Built in ultra rich color wheel
- HDBaseT
- Portrait mode capable
- Edge blending
- Geometric correction
- Status monitor display
- Motorized zoom, focus and lens shift with memory
- PC-less presentation
|
Power requirements
(Dual lamp mode) |
Operating voltage
Current rating
- 8.8A +10% or less at 110V-120V AC
- 4.3A+10% or less at 220V-240V AC
Power consumption
- AC110 - 120V, 50/60Hz 860W
- AC220 - 240V, 50/60Hz 810W
- Less than 0.5W @ standby with saving. (AC230V):
- Saving mode disables MONITOR OUT, AUDIO OUT, speaker sound, LAN communication and RS232C control except Power ON command in standby
Thermal dissipation
- 3618BTU(110-120V)
- 3379BTU(220-240V)
|
| Dimensions |
Dimensions (LxWxH) (without lens and feet in min. position)
- (LxWxH) 463mm x 537mm x 174mm
- (LxWxH) 18.2" x 21.1" x 6.9"
Net weight (without lens)
Shipping dimensions
- (LxWxH) 561mm x 743mm x 315mm
- (LxWxH) 22.1" x 29.3" x 12.4"
Shipping weight
|
| Operating environment |
Noise
- Standard mode: 36 dBA / 29 dBA Eco mode
Temperature
- 32-113°F (0-45°C) from sea level to 1600m (5249 feet)
- 32-104°F (0-40°C) from 1600m (5249 feet) to 3048m (10000 feet)
Altitude
- 0 to 10000 feet (0 to 3048m)
Humidity
|
| Regulatory |
This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC)
- FCC, Part 15, Subpart B, Class A
- EN55022/CISPR22 Class A
- ICES/NMB003 (A)
- EN55024 / CISPR24
- IEC 60950-1
- UL 60950-1
- EN 60950-1
- CAN/CSA C22.2 No. 60950-1
- Directive 2011/65/EU (RoHS)
- Directive 2012/19/EU (WEEE)
- EU Regulation (EC) No. 1907/2006 (REACH)
- Certifications marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), EAC (Russia), RCM (Australia and New Zealand), India (BIS), Mexico (NOM), Saudi Arabia, South Africa
|
