Hitachi CPWX4022WN is Hitachis latest Multi Purpose stackable projector. It offers double, triple or quadruple brightness levels. These versatile and feature rich models can either be stacked vertically or positioned horizontally to deliver superb images at a fraction of the cost of higher brightness models.
- Brightness: 4000 ANSI Lumens
- Resolution: WXGA
- Contrast Ratio: 3000:1
- Extended Hybrid Filter life of up to 5000 hours
- Lamp life: 5000 hours (Eco Mode)
- Advanced networking features
- Full connectivity
Specifications
Optical |
||
|
LCD Panel |
0.59" (1.5cm) P-Si TFT x 3 |
|
|
Contrast Ratio |
3000:1 |
|
|
Resolution |
WXGA |
|
|
Brightness |
4000 ANSI Lumens (Normal Mode) |
|
|
Colour light output |
4000 ANSI Lumens |
|
|
Lens |
Manual focus, manual zoom x 1.7 |
|
|
Lamp Wattage |
245W UHP |
|
|
Lamp Life |
3000 Hours (Normal Mode) / 5000 Hours (Eco Mode)* |
|
|
Diagonal Display Size |
30~300" (76~762cm) |
|
|
Number of colours |
8 Bit/colour, 16.7M colours |
|
|
Lens Shift |
Vertical 10:0~4:1, Horizontal 1.2:1~1:1.2 |
|
|
Optical keystone |
11:-1~6:1 Upward shift |
|
|
Focus distance |
0.9m~9.7m (Wide), 1.5m~16.1m (Tele) |
|
|
Distance to width ratio |
1.5 (Wide), 2.5 (Tele) |
|
Compatibility |
||
|
Computer compatibility |
IBM Compatible VGA, SVGA, XGA, WXGA, SXGA, WXGA+, WSXGA+, UXGA (compressed), MAC 16" |
|
|
Composite/S-Video |
NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43 |
|
|
Component Video |
525i(480i), 525p(480p), 625i(576i), 625p (576p), 1125i(1080i@50/60), 1125p(1080p@50/60), 750p(720p@50/60) |
|
|
Plug & Play |
DDC2B |
|
Features |
||
|
Speakers |
8W x 2 Mono |
|
|
Basic functions |
Freeze, Magnifying, Blank, Auto adjustment, Search, Auto signal search, Auto eco mode |
|
|
Picture Adjustments |
Equalizing digital gamma correction, 2-3 pull down for NTSC, Progressive scan, Noise reduction, Overscan, Perfect Fit |
|
|
Digital keystone |
Horizontal keystone ±35 degrees, Auto vertical keystone ±37.5 degrees |
|
|
Advanced Features |
MyScreen, My Memory, My Button (by remote control), My Text, My Source, Picture mode (normal, cinema, dynamic, daytime, black/white/greenboard modes, photo), PC-less presentation, DICOM Simulation, Input source naming (English), Resolution setting, Template, Closed Caption (for NTSC & component 480i only), Audio pass through, Framelock, Audio ports assign, Cloning, Drawing function (Optional wireless pen tablet TB-1 is necessary), Eco Mode (normal, eco, intelligent eco, saver), Instant stack, iOS Connectivity, ImageCare™ |
|
|
Outward |
Easy lamp replace from top, Air filter on side |
|
|
Power on & off |
Quick On, Direct On, Auto Off |
|
|
Security Systems |
Security bar, PIN-lock, MyScreen password lock, Key lock (key pad, remote control), Kensington slot, Transition detector, My Text password lock, Stack lock, Security label |
|
|
Network |
Network presentation (PC still/moving picture transfer), Configure and control projector via web browser, Receive alerts via e-mail, Projector management via SNMP, Crestron RoomView®, Scheduling, My Image, Displaying text data transferred via the network, Command Control via network, AMX Device Discovery, PJ Link™, Network Bridge |
|
|
OSD Languages |
33, including: English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Swedish, Russian, Finnish, Polish, Turkish, Arabic, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian |
|

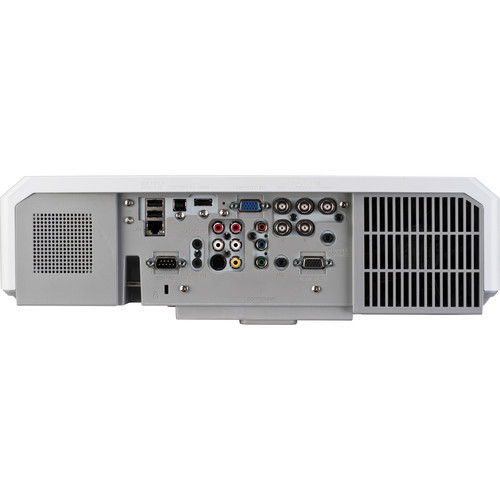

Connections |
||
|
Digital Input |
1 x HDMI (HDCP compatible) |
|
|
Computer Input |
1 x 15-pin Mini D-sub, 5 x BNC |
|
|
Monitor output |
1 x 15-pin Mini D-sub (RCA combination) |
|
|
Video Input |
1 x RCA for composite, 1 x Mini-DIN for S-Video, 3 x RCA for component, 1 x 15-pin Mini D-sub (shared with analogue computer in 1) |
|
|
Audio Input |
2 x Stereo Mini Jack |
|
|
Audio Output |
1 x pair RCA (L/R) |
|
|
USB T ype A |
2 x USB Type A (for PC-less presentation or optional wireless pen tablet TB-1) |
|
|
USB Type B |
1 x USB Type B (for USB display, USB mouse control) |
|
|
Wireless network |
IEEE802.11b/g/n ready (optional USB wireless adapter required) |
|
|
Wired network |
1 x RJ-45 |
|
|
Control |
1 x 9-pin for RS-232C control |
|
Power |
||
|
Power Supply |
100~120/220~240V, auto switching |
|
|
Power Consumption/Standby |
350W/<0.5W (AC 220-240V) |
|
Physical |
||
|
Dimensions (W x H x D) (Without feet) |
401 x 103 x 318mm |
|
|
Weight |
4.6Kg |
|
|
Noise Level |
30dB (Eco Mode)/36dB (Normal Mode) |
|
|
Air Filter |
Hybrid (up to 5000 hours) |
|
Miscellaneous |
||
|
Miscellaneous |
Indicator lights (lamp, temp, power, security), Serial number label on side, MAC address label on side |
|
Certification |
||
|
Certification |
UL60950-1/cUL, FCC Part 15 subpart B class B, CE, WEEE, RoHS, ErP (lot6) compliant, c-tick |
|
Accessories Supplied |
||
|
Accessories Supplied |
Remote control with batteries (HL02774), Computer cable, Power cord, Lens cap, Security label, Adapter cover, User manual (detail & concise), Application CD |
Additional Information
| Aspect Ratio | 16:10 (WXGA) |
|---|---|
| Brightness (ANSI Lumens) | Normal Mode: 4000 Lumens ; Eco Mode: 2800 Lumens |
| Contrast Ratio | 3000 : 1 (using active IRIS) |
| Display Type | 1 cm 3 LCD |
| Dimensions (WxHxD) | 15.8 x 4.1 x 12.5" / 401.3 x 104.1 x 317.5 mm |
| Weight | 10.14 lb / 4.60 kg |
| Power Consumption | Normal Mode: 350 W |
| Audible Noise | 35.0 dB ; Eco-Mode: 29.0 dB |
| Lamp Type | UHP |
| Throw Ratio | 1.50:1 - 2.50:1 |
| Lamp Life | (Full Power): 3,000 hours ; (eco-mode): 5,000 hours |
| Lens Shift | Horz & Vert |
| Throw Distance | 1.6 - 9.7 |
| Operating Temperature | 41ºF - 95ºF (5ºC - 35ºC) |
| Resolution | 1280x800 |
