Details

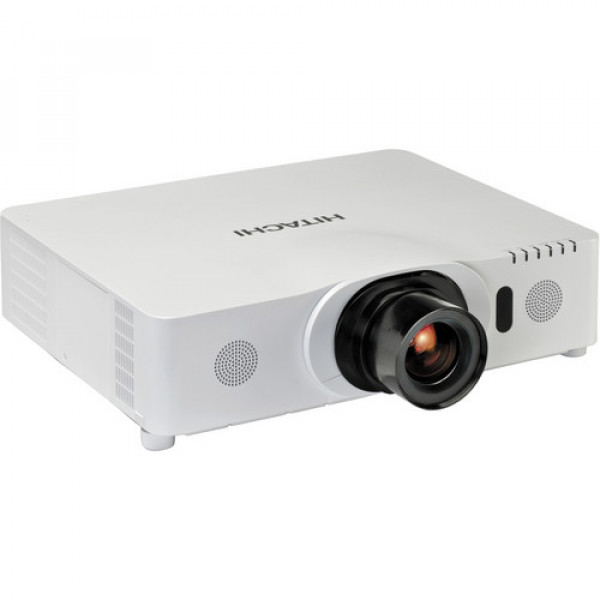

The CP-X8170 projector is geared up for simple and user-friendly functionality in any environment. With a convenient motorized lens shift, and a 360-degree vertical tilt angle, images can be seamlessly adjusted and moved at the touch of a button. Plus, with a wide range of optional lenses, the CP-X8170 can adapt to any environment, from conference rooms and lecture theaters, to museums or anywhere requiring a creative solution.
Key Features
- XGA resolution and 7,000 lumens white/color output
- Accentualizer - advanced image processing
- Picture by Picture and Picture in Picture
- Two speed motorized zoom, focus and lens shift control
- HDMI 2 inputs
- 20,000 hours hybrid filter
- 2,500 hours lamp life (Eco mode)
- 360° display rotation
Additional Information
| Aspect Ratio | 4:3 (Native) 16:9 |
|---|---|
| Brightness (ANSI Lumens) | 7000 ANSI Lumens |
| Contrast Ratio | 3000:1 |
| Display Type | 3LCD |
| Resolution (Native / Max) | XGA (1024 x 768) |
| Video Compatibility | NTSC, NTSC 4.43, PAL-M, PAL-N, PAL, SECAM, HDTV (480i, 480p, 576i, 720p, 1080i, 1080p) |
| Projection Lens | F = 1.6 ~ 2.9 f = 24 ~ 48 mm |
| Number of Colors | 16.7 Million Colors |
| Dimensions (WxHxD) | 19.6in. x 5.3in. x 15.6in.(49.78cm x 13.46cm x 39.62cm) |
| Weight | 19.4 lbs. (8.8 kg) |

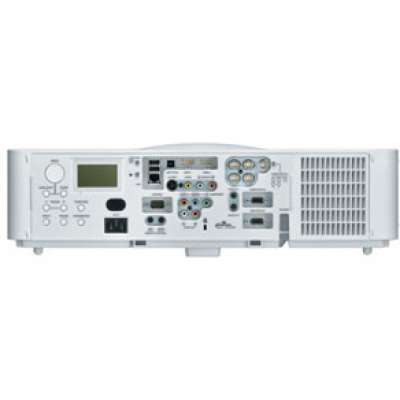

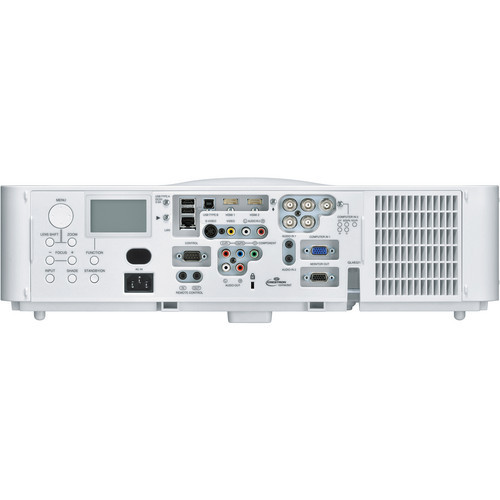

| Inputs | 2 x HDMI 1 x RGb D-Sub 15pin 5 x BNC 1 x S-Video 1 x Composite 1 x Component 2 x Stereo Mini Jack 1 x RCA Audio 2 x USB |
| Outputs | 1 x RCA Audio |
| Control | 1 x RJ-45 LAN 1 x RS-232 1 x USB Type B 1 x Remote Control |
| Power Supply | 100 ~ 120 / 220 ~ 240 V / 50 ~ 60 Hz |
| Power Consumption | 500W |
| Audible Noise | 39 dB (Normal) 33 dB (Eco mode) |
| Lamp Type | 365W |
| Projection Mode | Front, Rear, Ceiling |
| Projection Screen Size (Diagonal) | 30in. ~ 300in. (76.2cm ~ 762cm) |
| Throw Ratio | 1.5 ~ 3.0:1 |
| Vertical Keystone Correction | +/- 35 Degrees |
| H-Sync Range | 32 ~ 106 kHz |
| V-Sync Range | 56 ~ 120 Hz |
| Items | Remote Control Power Cord RGB Cable Lens Lens Cover User Manual Security Label Application CD Adapter Cover |
| Lamp Life | 2000 hrs (Normal) 2500 hrs (Eco Mode) |
| Operating Temperature | 32ºF - 113ºF (0ºC - 45ºC) |
