Details
Details Overview

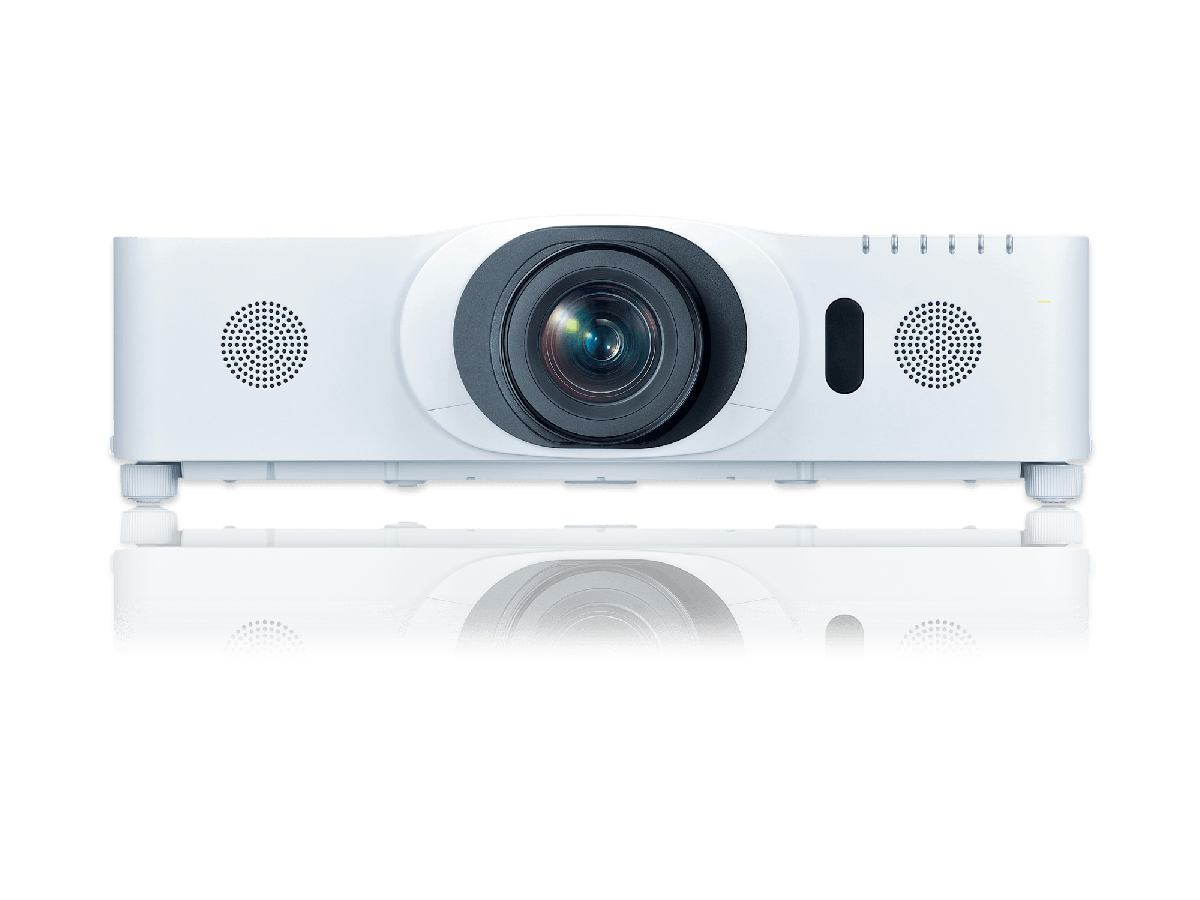

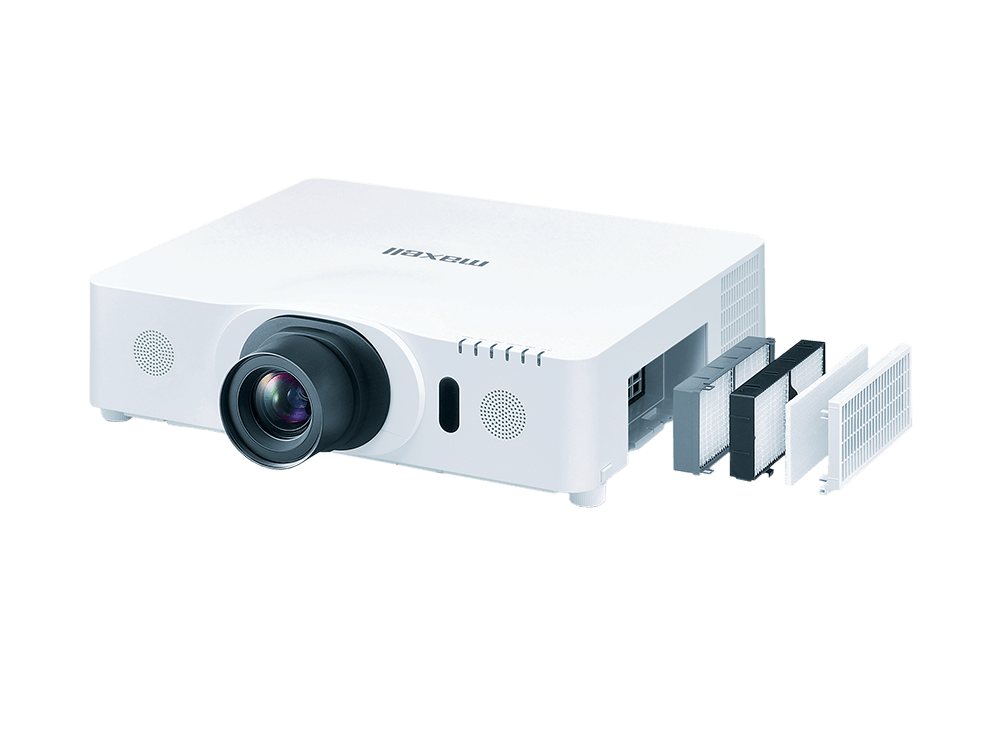

From mid-size to very large auditoriums and conference halls, Maxell’s MC-WU8461 LCD projector is the perfect solution. With 6,000 ANSI lumens brightness and WUXGA 1920 x 1200 resolution, the MC-WU8461 will deliver dynamic images guaranteed to dazzle any audience. Incorporating Maxell’s leading-edge technology, the MC-WU8461 features Maxell’s Accentualizer for advanced image processing, long lamp life, a variety of lens options to accommodate your specific application, and is wireless presentation compatible. Plus, embedded networking gives you the ability to manage and control multiple projectors over your LAN (scheduling of events, centralized reporting, image transfer, and e-mail alerts). Even with the array of advanced features, Maxell’s MC-WU8461 is designed for user-friendly operation and installation convenience.
Standard Features
Center Lens Design:
This feature makes it easy to align the projector with the center of the screen for faster and trouble-free setup.
Motorized Zoom, Focus and Lens Shift Control:
Allows for greater range of installation possibilities. With the motorized function you can make fine adjustments through the remote control or RS232/IP device.
Perfect Fit:
Enables the user to adjust individual corners independent of one another. This feature helps correct geometric and complicated distortions. Perfect Fit allows the projected image to fit correctly to the screen quickly and easily.
Projector Quick Connection App For Mobile Devices:
Our iOS and Android applications offers projector control and also provides the capability to display photos, document files and web site contents. Available for iPad®, iPhone® and Android devices. Works over your LAN via your RJ-45 port or via an optional USBWL11N wireless adapter.
Status Monitor:
With Maxell’s status monitor, you’ll have access in real time to projector diagnostics. Status updates include configuration information, maintenance history, as well as error and alarm messaging.
Network Control, Maintenance and Security:
Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer and e-mail alerts for reactive and routine maintenance.
PC-Less Presentation:
By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. Additionally there is also a slideshow function.
PJMessenger:
PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
Wireless Presentation Compatible:
Connect the projector to a computer or your network using the optional USB wireless adapter (part number USBWL11N). The adapter supports IEEE802.11b/g and the latest 11n.
Unique Features
Accentualizer:
Maxell original technology makes pictures look more real by enhancing sharpness, gloss and shade to make pictures as clear as pictures on a flat-panel device. You can also adjust the effects by three levels according to your surroundings so that the colors of projected images are the actual colors of the objects they represent.
HDCR (High Dynamic Contrast Range):
When average projectors are used in bright rooms, the darker colors of an image deteriorate and images become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. This results in clear images even in bright rooms.
DICOM® Simulation Mode:
The DICOM (Digital Imaging and Communications in Medicine) Simulation Mode projects grayscale images which approximate DICOM Part 14 specifications. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.
The projectors have a DICOM (Digital Imaging and Communications in Medicine) Simulation Mode. This mode simulates
the DICOM standard, which is a standard applicable to digital communications in medicine and is useful for displaying medical images such as X-rays. These projectors are not medical devices and are not compliant with the DICOM standard, and neither the projector nor the DICOM Simulation Mode should be used for medical diagnosis. Comparison photos are simulations.
Multiple Lens Options:
Projectors achieve a brightness of the highest class in the industry by adopting a short arc length lamp with a small F-number lens. There are a variety of lenses to use for this projector, all providing specified projector brightness! In addition to the one ML703 middle throw standard lens, six optional lenses are available: FL701 fixed, SL702 and SL712 short throw, ML713 middle throw, LL704 long throw and UL705 ultra-long throw.
Picture by Picture and Picture in Picture:
Images from two input signals at the same time. Picture by Picture (P by P) enables you to compare two images side by side. Picture in Picture (P in P) enables you to display one image within another image. These functions are handy when you need to compare two sets of data or other material.
360° Rotation:
Display rotation of 360° for creative applications and greater installation flexibility.
Additional Information
| Brightness (ANSI Lumens) | 6000 ANSI lumens |
|---|---|
| Contrast Ratio | 5000 : 1 (using active IRIS) |
| Display Type | 3 Chip LCD |
| Resolution | WUXGA - 1920 x 1200 |
