Details
-
Specifications
Optical
Display System
3LCD 19mm (0.76")
Panel Structure
3LCD
Resolution
WUXGA (1920 x 1200)
Light Output (Brightness) ANSI Lumens
8000 (Normal)
Contrast Ratio
2,500,000 : 1
Light Source Life
20,000 Hours
Lens
Interchangeable, not included
Lens Zoom
Powered Zoom x 1.7
Motorized Lens Shift
Yes
Lens Focus
Powered Focus
Lens Shift
Vertical -16.7 – +56.5%, Horizontal +/-10% (Standard Lens ML-713)
Projection Lens F Number
1.6 - 2.0 (Standard Lens ML-713)
Focus Distance
0.9 – 36.8m (Standard Lens ML-713)
Distance to width ratio (:1)
Lens FL-720M 0.38 / USL-701M 0.74-0.98 / FL-701M 0.78 SL-712M 1.15-1.75 / ML-713M 1.68-2.88 / LL-704M 2.78-4.75 UL-705M 4.75-8.10
Diagonal Display Size
30 – 600"
Features
Installation
Ceiling, Tabletop, Rear, Portrait, 360° Projection
Digital Keystone Correction
Horizontal ±30°, Vertical ±30° (ML-713)
Picture Modes
Standard, Natural, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard, Daytime, DICOM SIM, User–1, User–2, User–3
Picture Adjustments
ASPECT selection (Normal/4:3/16:9/16:10/14:9/Zoom/Native), Perfect Fit (4 corners and 4 sides), Frame Lock (Data signal with vertical frequency of 49 to 51Hz, 59 to 61Hz), HDCR, Image blank by RS232C/Remote control, Image optimizer, Magnify, Mirror reverse image, Up-side down image
Operating Features
Accentualizer and HDCR 2, Auto Power Off, Auto signal search & Source skip, Blending/Cropping, Closed Caption (CC1– 4, TEXT1– 4) support NTSC (Video) and 480i (Component signal), Digital Keystone Correction (Horizontal, Vertical: ±30 degrees), Direct Power On, Eco Mode (Normal, Eco), Equalizing Color temperature Adjustment, Equalizing Digital Gamma Correction, Filter timer / selectable interval time to show the message for air filter cleaning.(15,000hours is the default), Frame Lock (Data signal with vertical frequency of 49 to 51Hz, 59 to 61Hz), HDBase-T, Image blank by RS232C/Remote control, LED lamps (Filter, Shutter, Security, Lamp–1, Lamp–2, Temp, Power), Lens memory (Lens shift position, Lens type), MAC address displayed on the side of projector, Magnify 4 times (XGA) by RS232C/Remote control, Mechanical shutter, Mirror Reverse Image, Up–side Down Image, My Button by Remote control, My Memory, My source, My Text, MyScreen, Overscan (Video, Component video signal), Perfect Fit (4 corners), capable of saving/loading the setup, Picture by Picture/Picture in Picture, Picture Freeze by RS–232C /Remote control, Picture mode (Standard, Natural, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard, Daytime, DICOM SIM., User–1, User–2, User–3), Progressive(Video signal, Component video or HDMI signal of 525i(480i),625i(576i)),1125i(1080i)), Resolution setting
Network Features
Wireless Capability(Option), Present via Live Viewer Software (Windows/Mac), Multi Projector, Moderator Control Mode, Projector Quick Connection (iOS / Android app), Projector Monitoring and Control from a Remote Location, E-mail Alerts
Security
Password / Myscreen Password, Pin Lock, Key Lock
Languages
34 Languages (English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkey, Arabian, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil), Indonesian, Vietnamese, Hebrew)

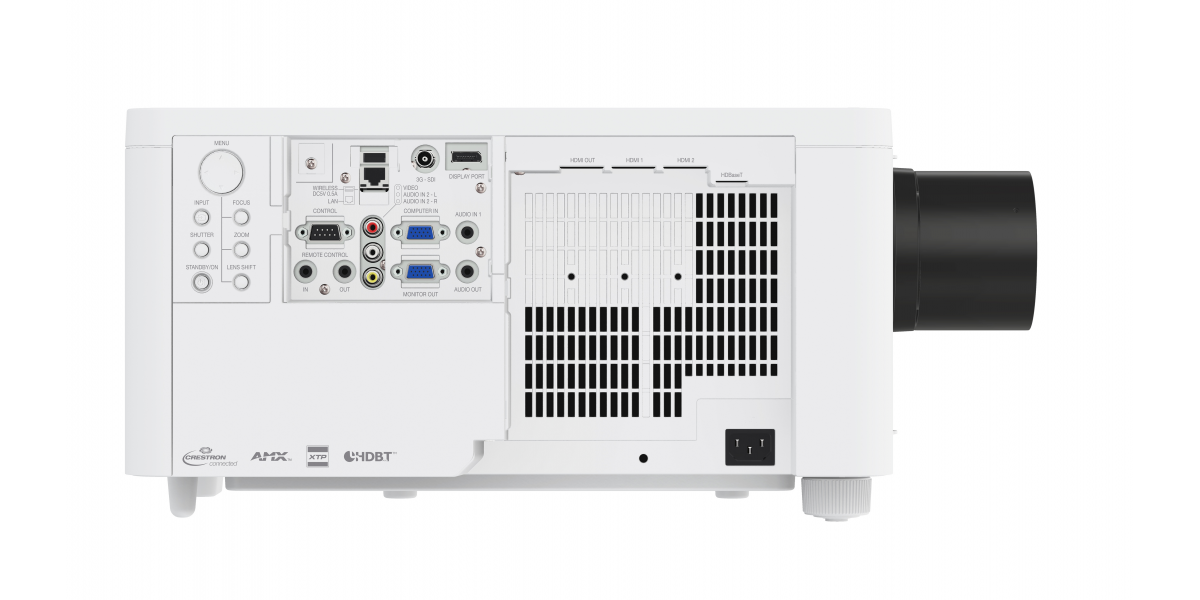

Connections
Digital Input
HDMI x 2 (HDCP 2.2 compliant) HDBaseT x 1 3G SDI x1 Display Port x 1
Analogue Input
15 pin Mini D-Sub x 1, BNC x 1
Video Output
15 pin Mini D-Sub x 1, HDMI x 1 (HDCP 2.2 compliant)
Audio Input
3.5mm Stereo Mini Jack x 1, RCA Jack (L/R) x 1
Audio Output
3.5mm Stereo Mini Jack x 1
RS-232C Control
1 x 9-pin D-Sub
Wireless LAN
USB-WL-5G wireless adaptor (optional)
Wired LAN
RJ45 Connector x 1
USB Type A
USB Type A x 1 (wireless adapter)
Wired remote control (in/out)
3.5mm Stereo Mini Jack x 1 (input) / 3.5mm Stereo Mini Jack x 1 (output)
Power
Power Supply
AC 100V – 120V / AC 220V – 240V (50/60Hz)
Operating Power Consumption
560W
Standby Power Consumption
Less than 0.5W
Physical
Weight
18.2Kg
Dimensions (WxHxD)
582 x 215 x 431mm
Noise
34dB (Normal), 26dB (Whisper)
Filter Life (Hours)
20,000
Compatibility
Computer
IBM Compatible VGA, SVGA, XGA,WXGA, WXGA+, SXGA, SXGA+, UXGA, WUXGA
Video
525i (480i), 525p (480p), 625i (576i), 625p (576p), 1125i (1080i@50/60), 1125p (1080p@50/60), 4K (3840x2160@30 4:4:4, Compressed)
Accessories
Supplied Accessories
Power Cable (1.8m), Computer Cable (2m), Remote Control Unit x1,Concise User Manual x1, Security Label x1, Lens Hole Cover x1, Cable Tie (large x1, medium x3), AA Batteries x2, Terminal Cover x 2, Warranty card x1, QC Pass Label x1
Optional Accessories
Lenses FL-720, USL-701, FL-701, SL-712, ML-713, LL-704, UL-705, USB wireless adaptor USB-WL-5G
Remote Control
HL02806
Filter
TBC
Miscellaneous
Certification
CE Marking, EN61000-3-2, EN61000-3-3, EN55032 (Class A), EN55035 (EMC Directive), EN60950-1 (Low Voltage Directive), WEEE/RoHS compliant
