Details

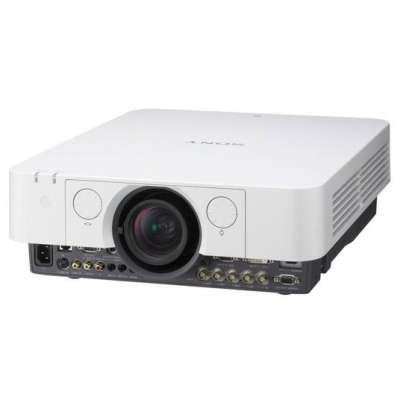

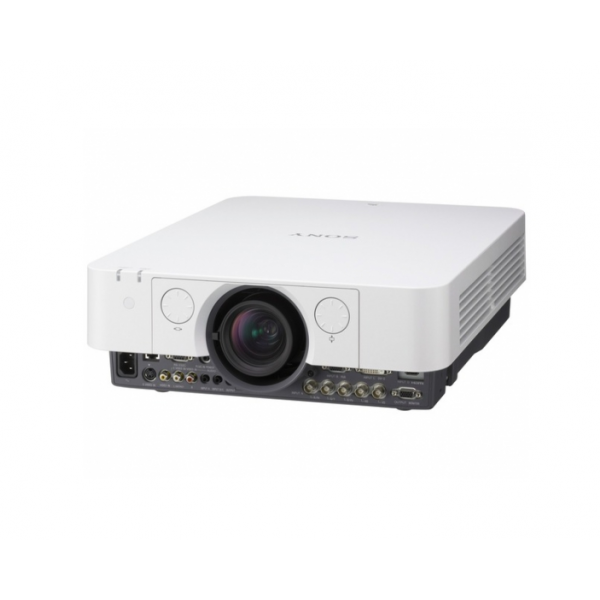

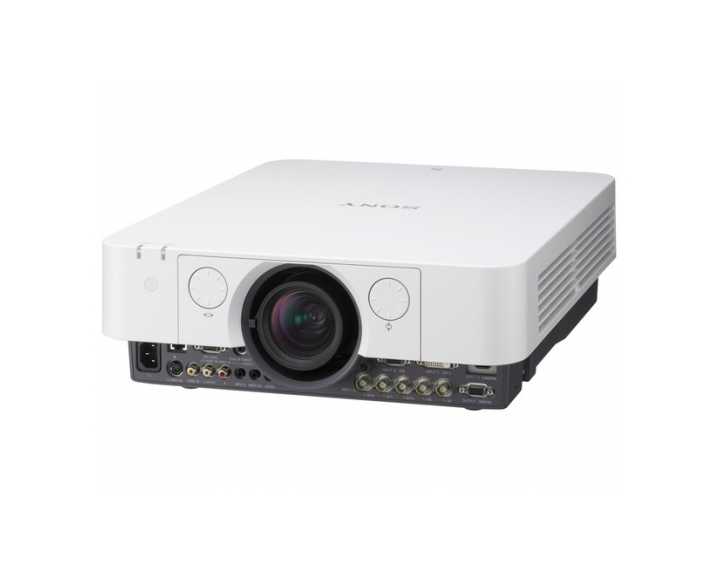

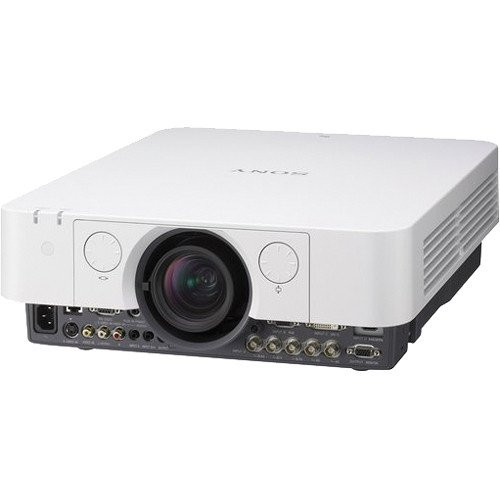

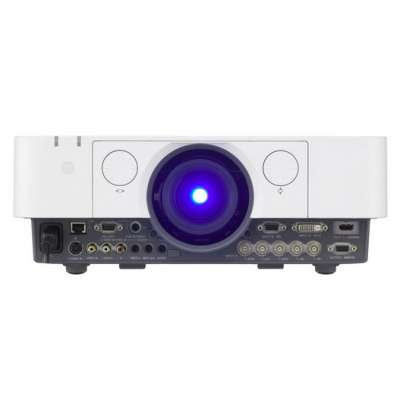

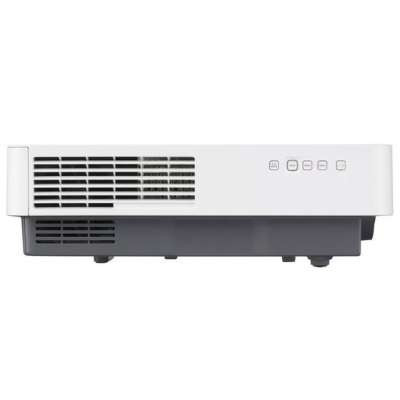

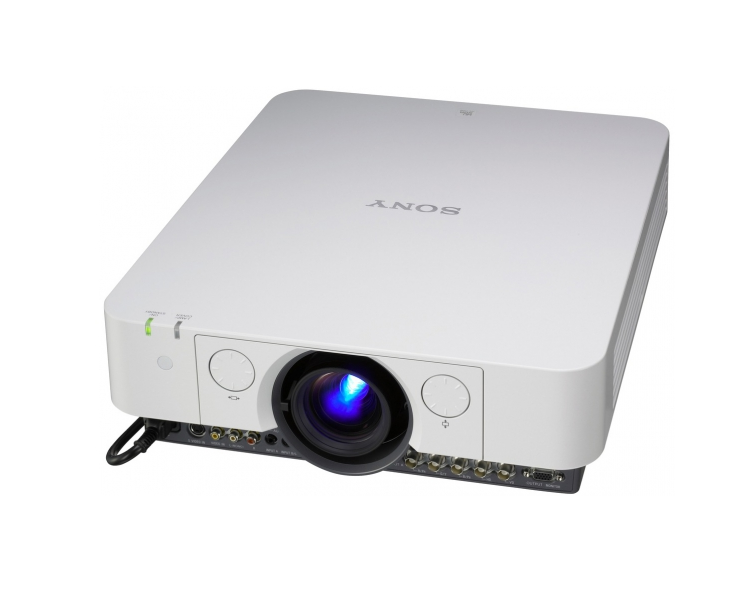

The VPL-FH36 3LCD installation projector outputs high bright 5200 lumens color light output, with native WUXGA resolution suitable for displaying today's high resolution computers and 1080p video sources. Advanced integration capability includes built-in edge blending feature for creating large uniformed image using multiple projectors and advanced geometric correction. Combined with 1.6x flexible standard zoom, horizontal and vertical wide lens shift range, and a wide variety of inputs means it can perform where other projectors would struggle. Having wide range of inputs, all range crisp focus lens, and other advanced projection capabilities such as DICOM GSDF simulation gamma mode, the models are obvious projector choices for venues that demand quality and practicality.
Features
- 3 LCD XGA BrightEra panel technology
Sony's BrightEra Panel Technology gives more accurate color rendition, higher brightness and longer lifespan for a lower Total Cost of Ownership.
- Ultra high resolution
The VPL-FH36's WUXGA (1920x1200) 16:10 format resolution delivers absolute best image quality.
- Very high brightness: 5,200 Lumens Color Light Output
With very high brightness of 5,200 Lumens Color Light Output, the VPL-FH36 gives a clearer image in high ambient light, making it highly suitable for larger venues.
- Wide zoom range (x1.6) and throw ratio (1.4 to 2.3) as standard
The standard lens has a wide zoom capability and throw ratio, offering more flexibility over the positioning of the projector, which can be installed closer to or further away from the screen.
- Wide lens shift range: vertical: +60%, horizontal: +/- 32%

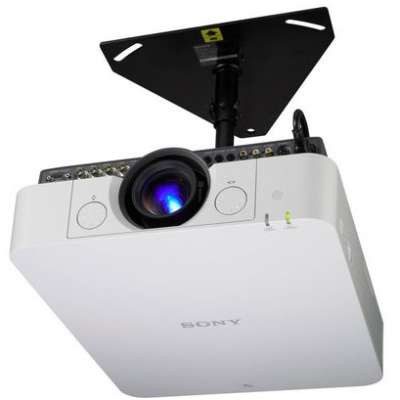

The VPL-FH36's wide lens shift range means that the projector can be positioned closer to the ceiling, or horizontally offset to avoid ceiling obstacles.
- Long lamp replacement time: 2,500-3,500 hours (High/Std)
Longer lamp life means fewer visits by maintenance personnel and lower Total Cost of Ownership.

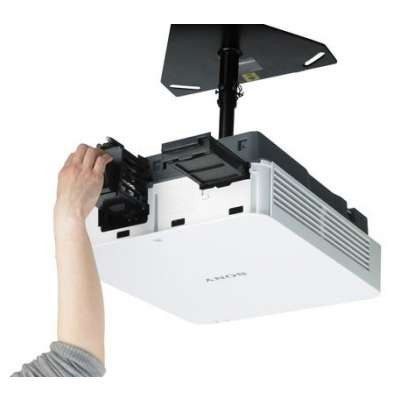

- Lamp/filter replacement cycles Synchronized
Synchronized lamp and filter replacement effectively halves the number of visits needed to maintain the projector in peak operating condition.
- Interchangeable lenses: Z1024, Z1032
The VPL-FH36 allows you to choose different lenses for increased flexibility.
- Edge blend
Multiple VPL-FH36 projectors have the ability to project a single seamless image onto a screen (wall) creating an exciting visual event, or retail or corporate signage application.
- Warping projection
Warping projection allows the customer to adjust the corners and sides of a VPL-FH36 projected image to any convex or concave screen set up or wall for dynamic signage displays.
Additional Information
| Aspect Ratio | 16:10 (Native) 4:3, 16:9 |
|---|---|
| Brightness (ANSI Lumens) | 5200 ANSI lumens (High Mode) 3900 ANSI lumens (Normal) |
| Contrast Ratio | 2000:1 |
| Display Type | 0.76\" LCD x 3 |
| Resolution (Native / Max) | WUXGA (1920 x 1200) |
| Dimensions (WxHxD) | 15.4in. x 5.8in. x 18.8in.(39.12cm x 14.73cm x 47.75cm) |
| Weight | 18.1 lbs. (8.21 kg) |
| Inputs | 1 x 5BNC 1 x Component 1 x Composite 1 x DVI-D 1 x HDMI 1 x S-Video 1 x RGB D-Sub 15pin 1 x S-Video |
| Outputs | 1 x RGB D-Sub 15pin 1 x Stereo Mini Jack |
| Control | 1 x RS-232 1 x RJ-45 LAN |
| Power Supply | AC 100 V to 240 V, 4.6 A to 1.9 A, 50/60 Hz |
| Power Consumption | 0.2 W (when “Standby mode” is set to “Low) |
| Audible Noise | 40 dB (High Mode) 35 dB (Low Mode) |
| Lamp Type | Ultra high pressure mercury lamp |
| Projection Mode | Front, Rear, Ceiling |
| Projection Screen Size (Diagonal) | 40” to 600” (1.02 m to 15.24 m) (measured diagonally) |
| Throw Ratio | 1.4 ~ 2.3:1 |
| Vertical Keystone Correction | +/- 30 Degrees |
| Items | Remote Control |
| Lamp Life | 2500 hrs (High Mode) 3500 hrs (Normal) |
| Optical Zoom | 1.6:1 |
| Lens Shift | Powered/Manual: Manual, Range Vertical: +60%, Range Horizontal: +/- 32% |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Humidity | 10% to 90% (no condensation) |
| Horizonal Keystone Correction | +/- 30 Degrees |
| Operating Humidity | 35% to 85% (no condensation |
| Storage Temperature | -20°C to +60°C (-4°F to +140°F) |
