Details

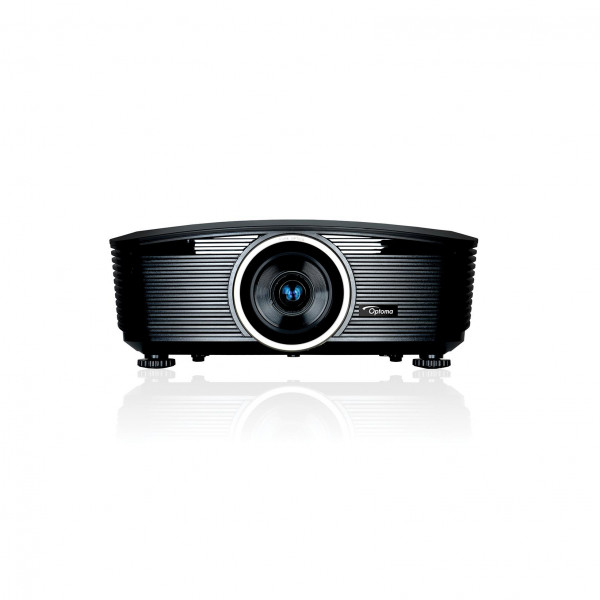

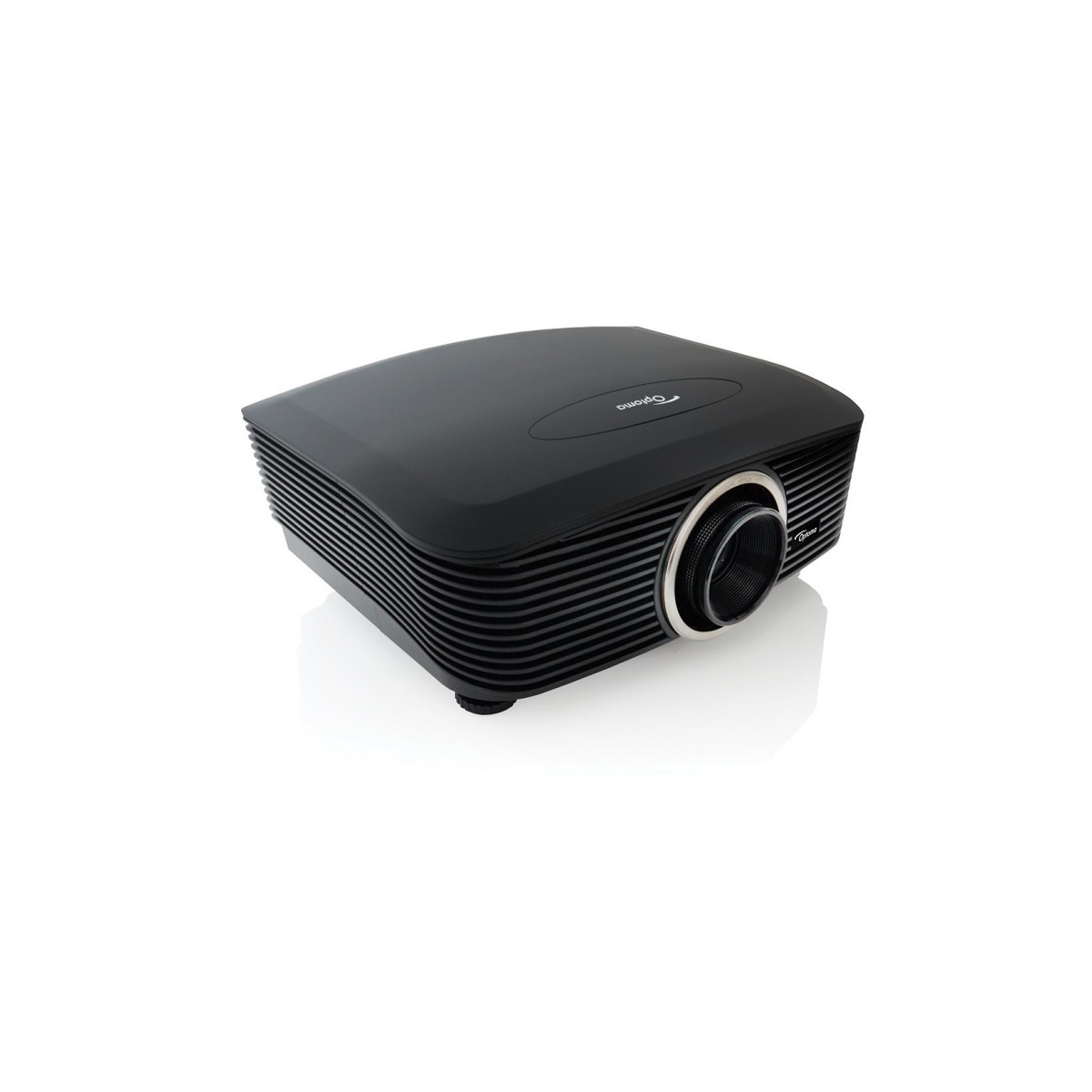

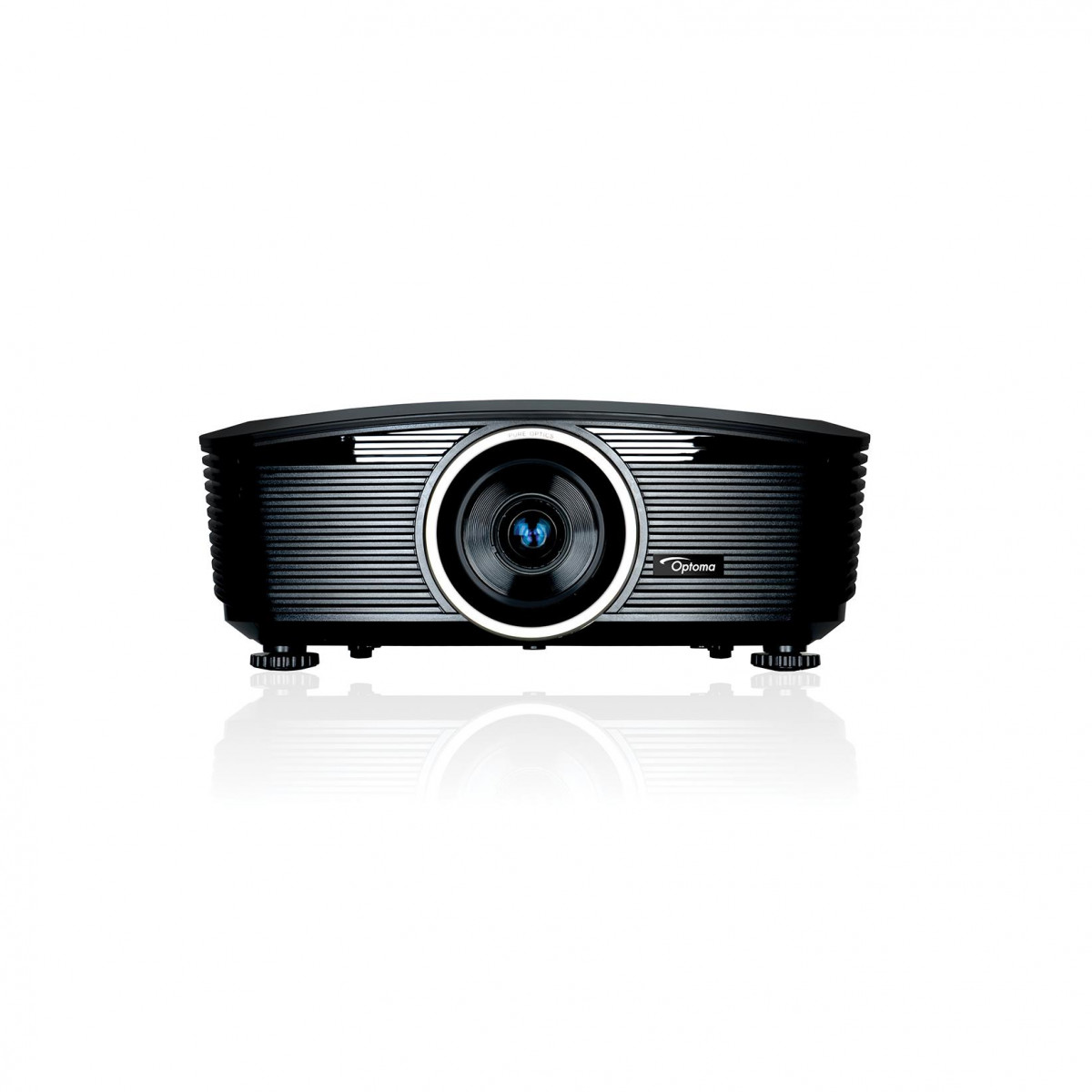

The Optoma EH504WIFI is a professional installation projector, offering a high brightness, crystal clear images, and a variety of advanced features to facilitate a quick installation. The Optoma EH504WIFI is ideal for conference rooms, large classrooms, lecture theaters, museums and houses of worship. For more complex installations, this projector is equipped with a large zoom range, vertical lens shift and a built-in geometric adjustment feature - ideal for uneven walls or where a projector placement is awkward and needs to be installed at an angle.
- Brightness:5,000 Lumens
- Contrast:2,000:1
- Resolution:1920x1200
- Native Aspect Ratio:16:10 (WUXGA)
- Color Processing:10-bit
- Projector Size:7.10" x 16.90" x 13.40"
- Weight:18.6 lbs
Additional Information
| Aspect Ratio | 16:10 native, 16:9/4:3 compatible |
|---|---|
| Brightness (ANSI Lumens) | 5000 ANSI lumens |
| Contrast Ratio | 2000:1 |
| Display Type | DLP™ Technology by Texas Instruments, 0.67” WUXGA, DC3,Type A chip |
| Resolution (Native / Max) | WUXGA 1920 x 1200 |
| Video Compatibility | PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p) |
| Projection Lens | 5 x lens options "no lens supplied as standard" |
| Power Supply | 100 – 240V AC @ 50 – 60Hz |
| Power Consumption | 460W (max) bright mode, <0.5w standby mode |
| Audible Noise | 37dB |
| Lamp Type | 370W |
| Throw Ratio | 0.77 ~ 5.0 "Lens dependent" |
| Lamp Life | 3500/1500 (hrs) |
| Features | "5 x Optional Lens [Short/STD/Long], Full Lens Shift, Crestron RoomView®, PJ-Link, Available in Black and White |
| Lens Shift | Max. Lens Shift -15 to +55% V, ±5% H (Manual) |
| Operating Temperature | 0 ~ 750m, 5 ~ 45˚C, 750m ~ 1500m, 5 ~ 35˚C, 1500 ~ 3000m, 5 ~ 30’C |
| Remote Control | Infra-red remote control, Multiple IR code sets for controlling multiple units, Wired connection sup |
| 3D | Mandatory HDMI 1.4 3D formats, 120Hz frame sequential (up to 720p) |
| Speaker Power | 3W |
| Keystone Correction | ± 40° Vertical |

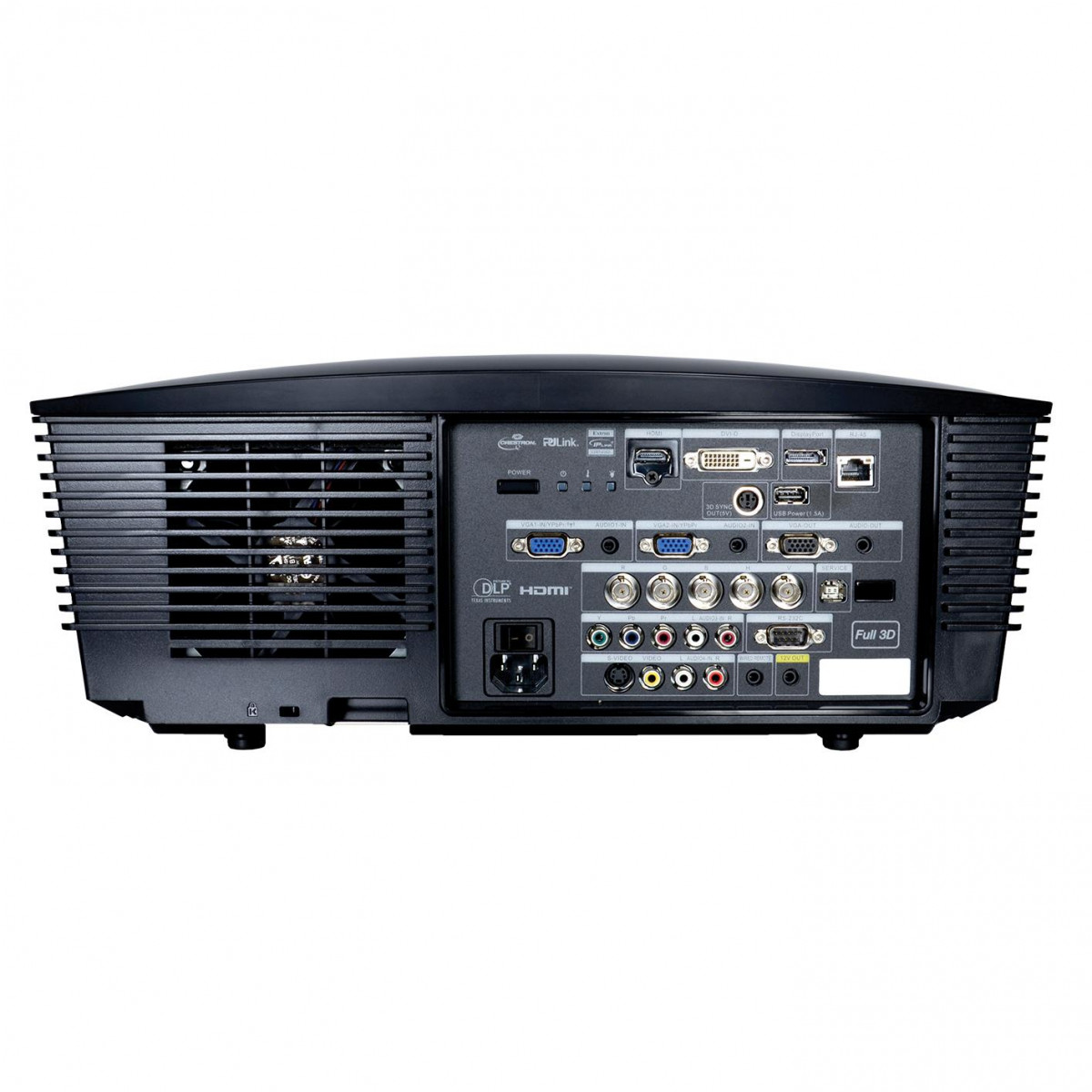

| InputsOutputs | HDMI (1.4a 3D support), DVI-D, DisplayPort, 5BNC, Component Video, 2 x VGA (RGB/YPbPr), S-Video, Composite, 5 x Audio In (RCA/3. |
| Uniformity | 85% (centre) |
| Zoom | Dependent upon lens |
| Color Range | 16.7 Million |
| Security | 4-digit PIN code, Kensington lock port, security bar |
