| Aspect Ratio |
16:10 |
| Brightness (ANSI Lumens) |
5,500 center 5,300 ANSI lumens |
| Contrast Ratio |
300,000:1 (Extreme Black enabled) 1,800:1 full on/full Off |
| Resolution (Native / Max) |
WUXGA (1920×1200) |
| Projection Lens |
1.8x zoom |
| Number of Colors |
Graphic 10 bits, 1073.4 Million colors |
| Dimensions (WxHxD) |
15.75" x 16" x 5" |
| Weight |
24.2 lbs |

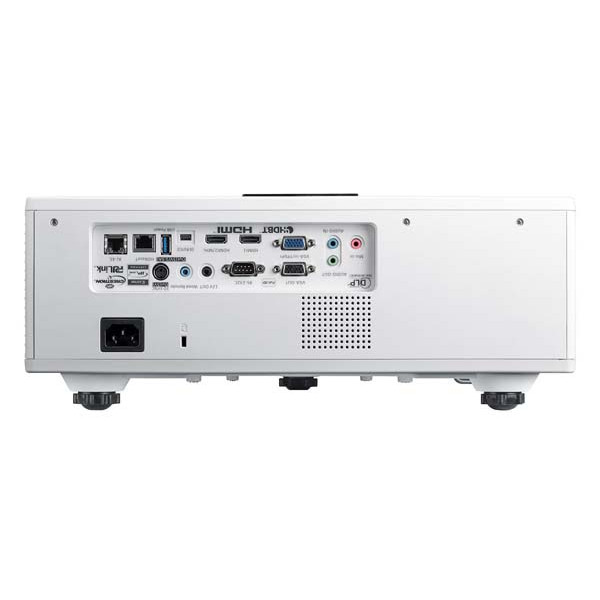

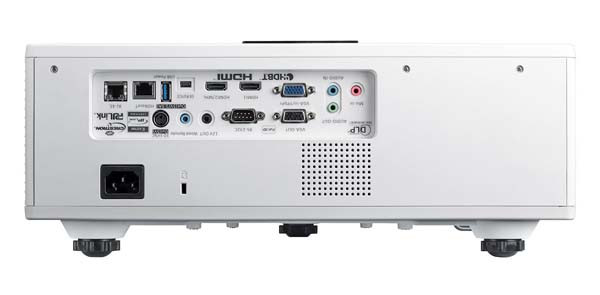

| Inputs |
3 x HDMI (HDMI 2 Support MHL) 1 x VGA (D-Sub 15pin) (Computer In) 1 x Microphone in 3.5mm 1 x Audio in 3.5mm 1 x HDBaseT |
| Outputs |
1 x VGA out (supports VGA loop through to monitor) (monitor out), 1 x audio out 3.5mm |
| Power Supply |
AC input 90-264V, 50-60 Hz, with PFC input |
| Power Consumption |
480W +/- 15% Max (Bright mode), 320W +/-15% Max (Eco mode) |
| Audible Noise |
33dB Typical (480W) 28dB Eco (320W) |
| Projection Mode |
Front, rear, ceiling count, tabletop |
| Projection Screen Size (Diagonal) |
27.9" – 301.8" |
| Throw Ratio |
1.2 ~ 2.13 (distance/width) -+ 5% variance |
| Audio |
10 Watt Stereo Speaker |
| Lens Shift |
±30% Vertical and Horizontal |
| Projection Distance |
1.3m / 4.3ft – 7.8m / 25.5ft |
| Operating Temperature |
Operating temperature 0 ft°10,000 ft at 5-40°C (41-104°F) |
| Native Resolution |
WUXGA (1920 x 1200) |
