Aspect Ratio |
16:10 |
Brightness (ANSI Lumens) |
3,300 Lumens |
Contrast Ratio |
18,000:1 |
Display Type |
Single 0.65″ WXGA DC3 DMD chip DLP™ Technology by Texas Instruments |
Resolution (Native / Max) |
WXGA (1280 x 800) NATIVE |
Projection Lens |
F/2.4; f=3.72mm, Fixed Zoom |
Number of Colors |
1.07 Billion |

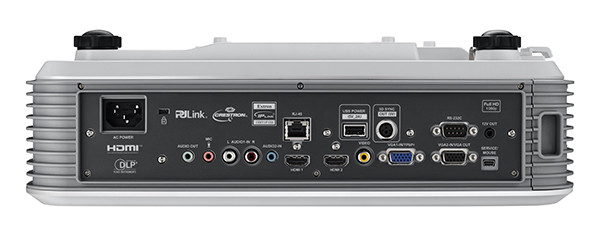

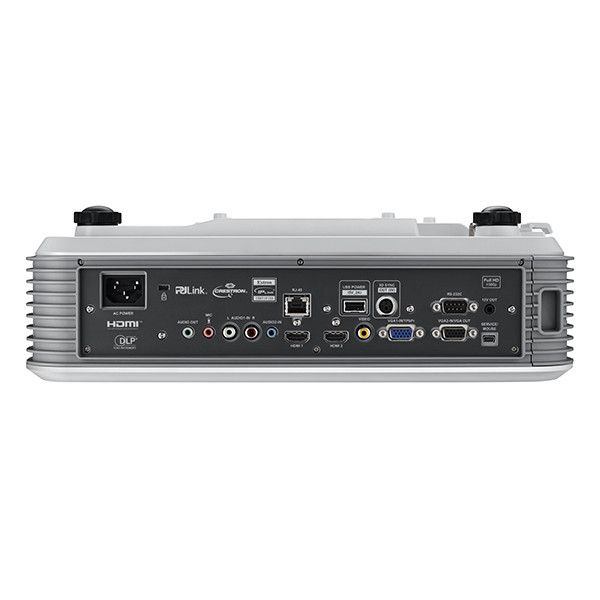

Inputs |
HDMI (1.4a 3D support), 2 x VGA (YPbPr/RGB), S-Video, Composite, 4 x Audio In (RCA/3.5mm), USB (interactive), Microphone In |
Outputs |
VGA out, audio out (3.5mm), +12v trigger |
Power Supply |
AC Input 100-240V, 50-60Hz, auto-switching |
Power Consumption |
235W (Bright mode), 200W (Eco mode) |
Projection Screen Size (Diagonal) |
85″ – 115″ |
Throw Ratio |
0.27:1 (distance/width) -+ 5% variance |
Audio |
16 watt speaker |
Projection Distance |
19.1" – 25.8" |
Operating Temperature |
Sea Level to 10,000 feet (@73°F); must manually switch to high-altitude mode at 5,000 feet & above |
Remote Control |
IR remote mouse control with laser |
Keystone Correction |
± 40° Vertical |
Uniformity |
85% |
Zoom |
Fixed |
