Details

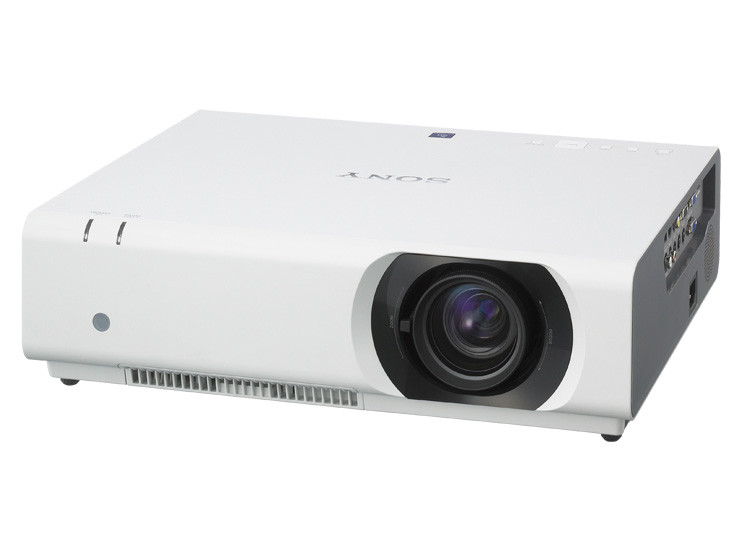

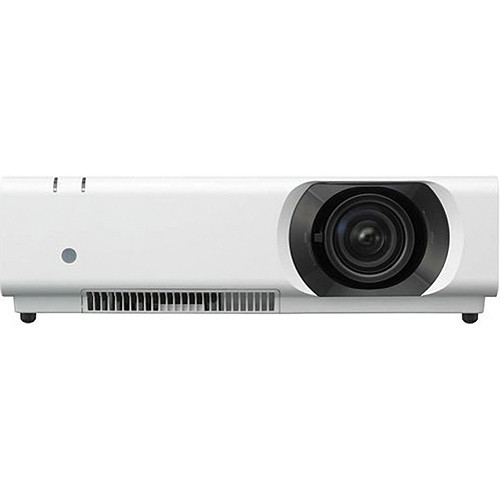

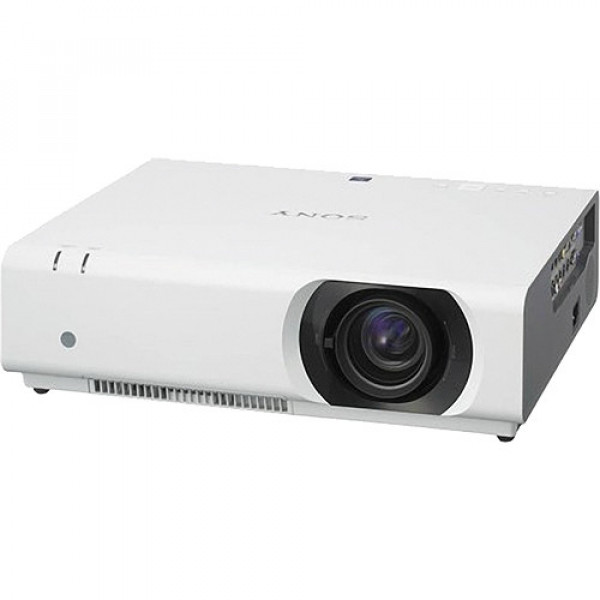

The VPL-CX235 offers great XGA 4:3 resolution and environmentally-friendly features for a low total cost of ownership. The VPL-CX235 incorporates Sony's BrightEra 3LCD inorganic panel technology that delivers higher picture quality, substantially brighter images, higher efficiency, better contrast, consistent color stability and longer durability and usability. The VPL-CX235 features three brightness modes to suit individual user's needs - 4,100, 3,100 and 2,200 lumens. The low brightness mode generates lower operating costs by reducing power consumption and extending the lamp lifetime. The projector also has a contrast ratio of 3100:1, a range of video inputs, including HDMI, and RJ45 or RS-232C connectors for control.
Features
- Maximum 4,100 lumens brightness with high, standard and low modes
The VPL-CX235 features three brightness modes for different uses - high 4,100 lumens for naturally white presentations in bright rooms, standard 3,100 lumens for everyday use, and low 2,200 lumens for video in darkened rooms.
- 1.66 - 2.41:1 throw ratio
The VPL-CX235 offers a 1.66 - 2.41:1 throw ratio that can accommodate most large classrooms or large meeting rooms.
- 3LCD BrightEra technology
Sony's 0.63-inch BrightEra inorganic TFT 3LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability.
- XGA 4:3 resolution
The VPL-CX235 has a native XGA (1024 x 768) 4:3 screen resolution panel that is perfect for presentations direct from video, laptop or PC.
- Long lamp life
Extended lamp life is possible with a driving scheme that reduces gap expansion and brightness gradation, plus a cooling system that allows uniformity in the temperature of the glass bulb and prevents it from clouding.
- Environmentally-friendly eco mode
Users can easily select power-saving eco modes. The most energy-efficient mode is accessible though a single button-push, and further adjustments are available through an easily understood menu system.
- Environmentally-friendly lamp dimming
With lamp dimming, the projector can reduce power consumption and brightness by 10-15% without user detection. After a pre-set time assigned by the user, the brightness and power consumption will reduce to 30% power usage. Instant 100% brightness returns with a signal input to the projector.
- Environmentally-friendly picture mute
Picture mute reduces power consumption down to 30% power usage, saving cost and lamp hours. This feature can be used in the education market as an instant off/on between class changes, or in the corporate market as a tool to redirect attention away from the screen and reduce power.
- Vertical and horizontal keystone adjustment
The projector can correct keystone distortion for perfect installation adjustment.
- Smart APA (Auto Pixel Alignment)
When a computer is used as a picture source, APA automatically optimizes phase, pitch and shift values. These can also be adjusted manually.
Additional Information
| Aspect Ratio | 4:3 (Native) 16:9 |
|---|---|
| Brightness (ANSI Lumens) | 4100 ANSI lumens (High Mode) 3100 ANSI lumens (Normal) 2200 ANSI lumens (Low Mode) |
| Contrast Ratio | 3100:1 |
| Display Type | 0.63" Poly-Silicon TFT Active Matric LCD x 3 |
| Resolution (Native / Max) | XGA (1024 x 768) UXGA (1600 x 1200) |
| Video Compatibility | NTSC 3.58, NTSC 4.43, PAL, PAL-M, PAL-N, PAL 60, HDTV (480i, 480p, 576i, 576p, 720p, 1080i, 1080p) |
| Dimensions (WxHxD) | 15.9in. x 4.8in. x 13.0in.(40.39cm x 12.19cm x 33.02cm) |
| Weight | 12.2 lbs. (5.53 kg) |

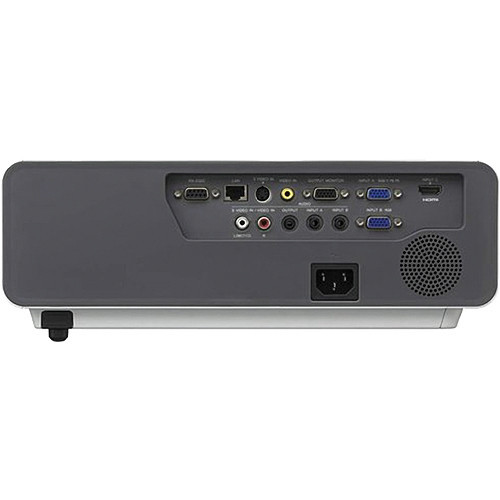

| Inputs | 2 x RGB D-Sub 15pin 2 x Stereo Mini Jack 1 x HDMI 1 x S-Video 1 x Composite |
| Outputs | 1 x RGB D-Sub 15pin 1 x Stereo Mini Jack |
| Control | 1 x RS-232 1 x RJ-45 LAN |
| Power Supply | 100 ~ 240 V / 50 ~ 60 Hz |
| Power Consumption | 340W (High Mode) 280W (Normal) 240W (Low Mode) 3W (Standby) 0.5W (Standby: Low Mode) |
| Audible Noise | 30 dB |
| Lamp Type | 245W |
| Projection Mode | Front, Rear, Ceiling |
| Projection Screen Size (Diagonal) | 40in. ~ 300in. (101.6cm ~ 762cm) |
| Throw Ratio | 1.66 ~ 2.41:1 |
| Vertical Keystone Correction | +/- 30 Degrees |
| H-Sync Range | 19 ~ 92 kHz |
| V-Sync Range | 48 ~ 92 Hz |
| Menu Languages | English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified |
