Details

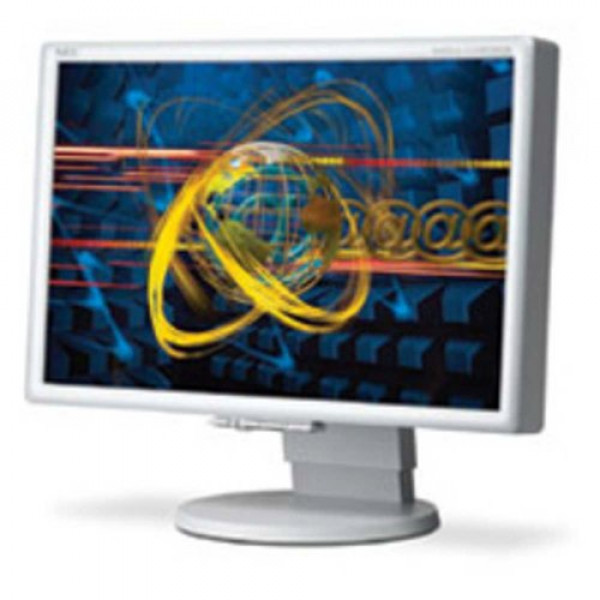

Add unparalleled performance to your visual experience with the 20" NEC MultiSync LCD2070WNX, a widescreen flat-panel monitor. This ultra-thin-frame model's screen delivers crystal-clear images without glare, while Ambix dual-input technology ensures compatibility with today's and tomorrow's computer systems. Additional features include a height-adjustable stand, an integrated USB 2.0 hub that connects you to all of your peripherals, NaViSet software for intuitive screen setting adjustments via mouse and keyboard, and Dynamic Video Mode for enhanced contrast.
SPECS
GENERAL
-
Display TypeLCD monitor / TFT active matrix
-
Native Resolution1680 x 1050 at 60 Hz
-
Contrast Ratio500:1
-
Color Support16.2 million colors
-
Controls & AdjustmentsBrightness, contrast
-
Dimensions (WxDxH)18.5 in x 8.7 in x 18.9 in
-
Horizontal Viewing Angle+80 / -80
-
Vertical Viewing Angle+75 / -70
-
Viewable Size20.1"
-
Pixel Pitch0.258 mm
-
Brightness300 cd/m²
-
Horizontal Refresh Rate82.3 kHz
-
Vertical Refresh Rate85 Hz
-
ManufacturerNEC Corporation
POWER DEVICE
-
Nominal VoltageAC 120/230 V
-
Frequency Required50 - 60 Hz
-
Power Consumption Operational53 Watt
CHASSIS
-
Built-in DevicesUSB hub
INTERFACE PROVIDED
-
Qty1
-
Connector Type15 pin HD D-Sub (HD-15), 24+1 pin digital DVI, 4 pin USB Type A
POWER
-
Power Consumption Stand by / Sleep2 Watt
-
Power Supplyinternal
MISCELLANEOUS
-
Microsoft CertificationsCertified for Windows Vista
-
Controls & Adjustmentsbrightness, contrast
-
Mounting Kitoptional
-
Flat Panel Mount Interface100 x 100 mm
DISPLAY
-
Image Brightness300 cd/m2
-
Image Contrast Ratio500:1
-
Color Supportup to 16.2 million colors
-
TypeLCD monitor
VIDEO
-
Video Outputnone
ENVIRONMENTAL STANDARDS
-
EPEAT CompliantEPEAT Silver
-
ENERGY STAR CertifiedYes
-
TCO CertifiedYes
SOFTWARE / SYSTEM REQUIREMENTS
-
Included SoftwareDrivers & Utilities, NaViSet
VIDEO INPUT
-
Digital Video StandardDigital Visual Interface (DVI)
MECHANICAL
-
Display Position AdjustmentsHeight, swivel, tilt
DIMENSIONS & WEIGHT
-
Width18.5 in
-
Depth8.7 in
-
Height18.9 in
-
Weight18.74 lbs
ENVIRONMENTAL PARAMETERS
-
Min Operating Temperature41 °F
-
Max Operating Temperature95 °F
-
Humidity Range Operating30 - 80%
HEADER
-
BrandNEC
-
Product LineNEC MultiSync
-
ModelLCD2070WNX
-
Packaged Quantity1
-
CompatibilityPC
PROJECTOR
-
Max V-Sync Rate85 Hz
-
Max H-Sync Rate82.3 KHz
SOFTWARE
-
TypeDrivers & Utilities, NaViSet
TV TUNER
-
TV Tuner PresenceNo
